VisionTIR - Rotary Kiln Monitoring System
The thermal camera-based kiln shell monitoring system RKS300 monitors kiln shell and provides real-time inspection of the entire kiln length. It integrates hardware and software as a solution, allowing the detection and measurement of all hotspots on the kiln shell, even at an early stage.
-
Most popular related searches
Products Details
With real time inspection at the highest resolution (up to 3.200 measuring points per line), the RKS300 purpose is to ensure proper kiln-shell safety and durability, optimize kiln efficiency and reduces the cost of maintenance due to damage and unscheduled downtime.

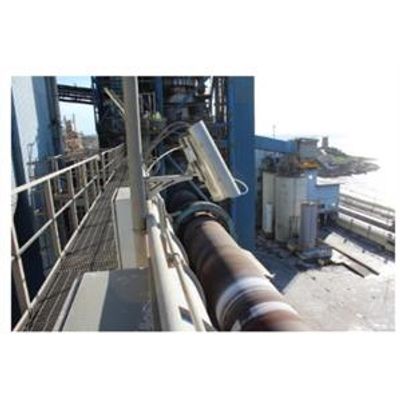

To withstand the aggressive environment that surrounds the system in a cement plant, the RKS300 is protected by a rugged protective housing that resists adverse conditions thanks to an air purge and an internal temperature control device. This keeps the thermal camera clean within a constant ambient temperature.
Benefits
- Higher field of view for new larger kilns (up to 4 thermal cameras with 110º view angle)
- Higher resolution (up to 3.200 measuring point per line) for refractory detail
- High sensitivity to identify even the smaller temperature changes and hot spots.
- Easy integration and communication of all data to Plant Control System.
- Pre-wired and pre-tested for an easy installation.
- Calibration checks are not required.
- Fiber optic communication
- Training and commissioning support by highly qualified and experienced team.
RKS300 Softwar
RKS300 software provides real-time thermal imaging for temperature monitoring, display, analysis and detection of hot-spots. Furthermore, our software enables access to all temperature points giving its kiln’s surface coordinates with very accurate measurements.
View trends, optimize and facilitate your maintenance schedules and operations. RKS300 software includes:
- Fan Control System: Prevents kiln shell deformation with active cooling, controlling up to 16 fans with independent actuators.
- Tire Slip Monitoring: Monitors the displacement of up to 6 slip rings.
- Shadow Monitoring: Measures up to 8 FOV shaded areas by integrating IR temperature sensors.
- OPC Server Protocol and Client Configurations: Data Integration and communication to the different levels of the factory (SCADA, data bases, communications with PLC and sensors) via OPC connection.
Performance
- Temperature range: 20º C – 900ºC
- Resolution: Up to 3,200 px/line
- Accuracy: +-2% or +-2ºC
- Available Optics: From 13º to 90º
- Frame Rate: Up to 80 Hz
- Temperature Alarms: Up to 8 zones
- Fans: Up to 16 zones
- Refractory: Up to 20 zones
- Slip Rings: Up to 6 zones
- Shaded areas: Up to 8 zones
Industries
Cement, lime, refractory, aluminum and iron
