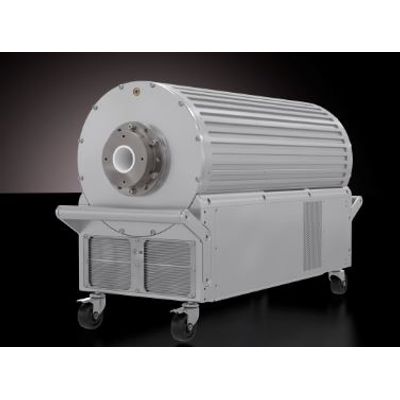

VJX - Model HVG 160-450 -High-Voltage X-Ray Generators

The HVG 160-450 series of high-voltage X-ray generators is engineered to deliver between 160 to 450 kV with a power range of 2 to 6 kW. This series stands out for its compact and lightweight structure, which facilitates ease of installation, especially in robotic c-arm applications where payload and size limitations are critical. The design includes oil-based insulation that enhances thermal dissipation, ensuring the efficient operation of the generator. The advanced design supports high reliability and performance, featuring an entirely enclosed and fan-less configuration that makes it suitable for operation in challenging environments. It operates on a 220VAC input voltage with a tolerance of ±10% and supports both 50 and 60 Hz frequencies, using a single-phase power supply. The weight of these generators ranges from 66 kg to 132 kg, catering to diverse installation requirements.
