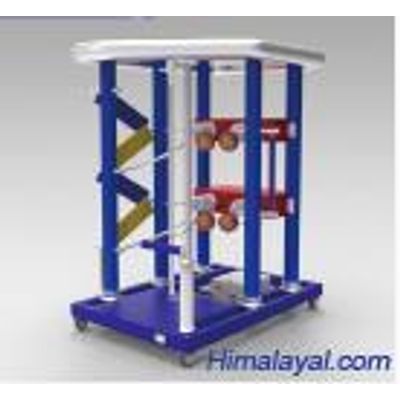

Himalayal Impulse - Model HIVG200KV-5KJ -Voltage Generator

Related Standards:

• IEC 60060-2-2010 High-voltage test techniques. Part 2: Measuring systems
• IEC 61083-1-2001 Instruments and software used for measurement in high-voltage impulse tests-Parti: Requirements for instruments "IEC 61083-2-1996 Digital recorders for measurements in high-voltage tests-Part 2: Evaluation of software
• ANSI/IEEE 4a-2001 Techniques of High-Voltage Testing
• ANSI/IEEE 376-1975 Measurement of Impulse Strength and Impulse Bandwidth
• ANSI/IEEE 1122-2007 Digit Recorders for Measurements in High-Voltage Impulse Tests
• ASTM D69-D2484 Electrical Insulation (I)
• ASTM D2518-Latest Electrical Insulation (II)

1. Rated Voltage: ±200KV
2. Rated stage voltage: ±100kV
3. Rated charging voltage: ±1OOKV
4. Rated energy: 5kJ
5. Stages: 2 stage
6. Pulse capacitor: 10OkV 0.5uF 2sets totally.
7. Stage energy: 2.5kJ
8. Impulse voltage waveform parameter:
1. Under the condition of Load capacitance:400-3400pF (Include Capacitance Voltage Divider)
2. Standard lightning impulse voltage full-wave T1=1.2uS±30%, T2=50uS±20%, oscillation at peak value less than 5% of amplitude
3. This two impulse voltage waveform parameter and deviation meet the requirement of GB311 and GB16927.
9. Minimum output voltage >20%Un
10. Synchronous range: stage voltage is between 20%-100% of rated voltage. Positive and negative polarity synchronous range less than 25%.
11. Synchronous discharge out of control rate <5%
12. Sparking range: 10%-100%Un
13. Charging voltage instability <±1.0%
14. Working time:When voltage above than 2/3 rated voltage, the systems can continuous working each 120s (charging and discharging). When the voltage is below 2/3 of rated voltage, the system can continuous working each 60s (charging and discharging).
