Model MSX Series - Voltage Stabilisers
Backed by more than 100 years of experience in the field of voltage and power control, the Claude Lyons Series TS is universally recognised as the finest range of AC servo mechanical voltage stabilisers available on the market. Designed and manufactured in the U.K. for a World market, the TS range of single and three phase AC Voltage Stabilisers control the supply voltage to virtually any equipment that suffers from supply line fluctuations. Our Electromechanical Voltage Stabilisers utilise a sophisticated Microprocessor Electronic control system to continually monitor and adjust a motor driven Variable Auto Transformer, the output of which is fed directly to the output terminals on low power units or into a transformer designed to “Buck or Boost” the input voltage in our higher power units. This in turn ensures that even with a fluctuating mains supply Voltage the output can be adjusted and maintained at the desired Voltage level.
This tried and tested method delivers highly cost effective, Stepless Voltage Stabilisation with the ability to maintain the Output Voltage precisely at the desired pre-set value.
These are typically used to maintain the supply to within very small tolerances at a pre-set voltage, we offer a very wide range of units available from stock or built and supplied to meet customers particular specifications, ranging from 500VA to over 1000kVA in both single phase and three phase applications.
With a vast Standard Range offering various Input swing options up to 50% for Input supply Voltages up to 450 Volts. Alternative tappings give three selectable input swings within the total input range 50:50, 70:30 or 30:70. TS series systems as standard are housed in bespoke well-ventilated, robust steel cabinets.
In addition to which we have in-house engineering and design services available to complement our manufacturing facilities should you require a bespoke solution whatever your requirements from IP00 to integrate within your existing systems to special enclosure designs or specific customised options which are of course in addition to numerous options regularly.

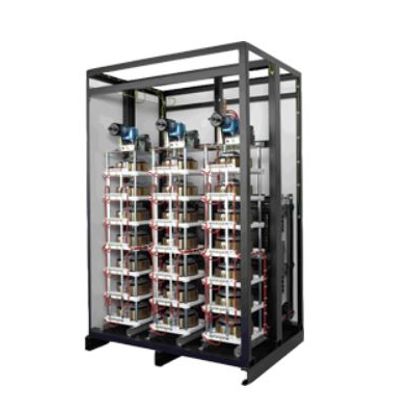

Three phase assemblies comprising three single phase stabiliser units, star connected in a single cabinet, providing individual correction of each phase ensuring balance even with unbalanced supply or load.
TS stabilisers offer an unequalled combination of features providing exceptional performance with great versatility and high reliability. In addiction to the standard features a wide range of options are also available.
- High accuracy – better than +/- 0.5% (zero to full load)
- Microprocessor controller for rapid True RMS sensing and response speed
- High efficiency (approx. 98% at full load)
- Negligible waveform distortion
- Unaffected by supply frequency variations
- Unaffected by load power factor
- Indoor tropical rating (will operate to 40C at full load rating)
- Very low temperature coefficient (only 1% change in output voltage for 40C ambient change)
- Three phase models provide independent correction on each Phase
- Transient Suppression included as standard Link
We offer a large arrange optional extras to tailor the perfect solution to your application.
- Circuit Breakers / Fuses
- Customised enclosures from IP00 to IP54
- Class II Output Surge Arrestors
- Metering Options
- Bypass switch
- Over and Under Voltage / Frequency Relay
- Class I Input Surge Arrestors / Lightning Protection
- Safe Start
- Remote Monitoring & Alarms
- Remote Sensing
- USB controlled output voltage
- Isolation Transformer
- 0-10V Control
- Noise, Spike and Transient Protection
