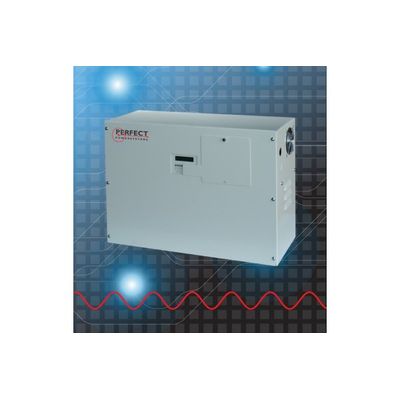

Model POWER LITE - Wall Mountable Central Lighting Inverter - 200 to 490 Watt
Pure Sine Wave Output preferred for LED Lighting Loads. Automatic monthly and annual self testing. Compact 24" wide x 17" high x 9.5" deep, space-saving enclosure with front access. Double Conversion, "no-break" online system for all applications and lamp types. Bright function indicators for rapid identification of system status. Enhanced protection utilizing latest TVSS technology. 1 Year Warranty. Optional RS-232 and USB comm port with monitoring software. Optional SNMP/Web card.
Most popular related searches
battery discharge
LED lighting
sealed lead acid battery
lead-acid battery
battery maintenance
central inverter
load current
battery protection
inverter
- Power Rating : 200, 300, 490 Watts
- Input Voltage : 120 or 277 Volts ±10% On-line zero trsfer time
- Output Voltage : 120 or 277 Volt
- Output Frequency : 50 or 60 Hz. ±5% (battery mode)
- Output Voltage Reg. : ±4% for all loads and for Battery Discharge mode
- Output Wave Form : Sine-wave, THD <3% at linear load
- Output Protection : Current limiting and short circuit protection
- Battery : Sealed lead acid, maintenance free
- Battery Time : Recharge time per UL 924
- Indicator LCD : UPS Status
- Indicator LED :
- Green, UPS ON, Output available
- Orange: Battery mode, Bypass mode,
- Red: Fault
- Audible Alarm : Battery Mode, Overload, Fault
- Environmental :
- Humidity: 0-95% RH w/no condensation
- Operating Temperature:
- UPS: 0°C to 40°C. (32°F to 104°F)
- Battery: 20°C to 30°C. (68°F to 86°F)
- Safety Agencies : UL924, NFPA101, NFPA70, NEC, and OSHA.
- Dimension : 24" Wide x 17" High x 9.5" Deep
