Tianyu - Model TY-6090 - Wall-Mounted Biogas Analysis System

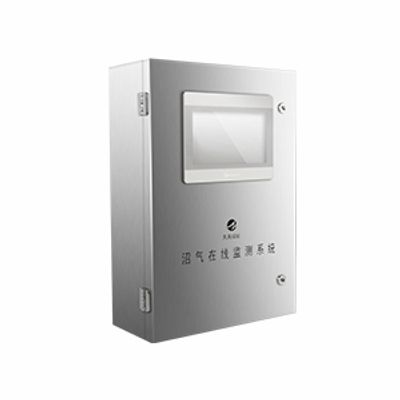

Wall-mounted biogas analysis system TY-6090 measures CH4,CO2,O2,H2S optional CO and H2 at the same time in one unit. It adopts modularization sensor design, easy for replacement and maintenance.
Most popular related searches
biogas analysis system
continuous biogas monitoring
biogas analysis
biogas system
biogas monitoring system
biogas power plant
biogas
anaerobic digestion project
biogas power
biogas monitoring
- Using 10`` TFT LCD touch screen
- Measurement value display/real-time curve display
- Calibration menu and alarm setting with password protection
- One set back to factory setting
- Integrated zeroing pump for automatically air zeroing
- PLC control sampling and drainage interval time
- Stainless steel enclosure for anti-corrosion
- Optional sampling pump
- Maximum for six sampling point switching in one unit
- Measurement: CH4, CO2, O2, H2S (extendable to CO,H2)
- Technology
- CH4 , CO2: proprietary dual beam NDIR detectors
- O2 ,H2S: industrial electrochemical cell
- Ranges
- CH4: 0-100%, CO2 : 0-50%, O2: 0-25%, H2S:0-9999ppm
- Other ranges customizable on request without price increase
- Resolution: 0,01% for CH4, CO2, O2; 1ppm for H2S
- Accuracy: CO2/CH4/O2:0.01%;H2S:1ppm
- Repeatability: CO2/CH4/H2S/O2:≤1%FS
- Gas conditions at analyzer inlet
- Flow:0.7L-1.2/min
- Pressure:2kPa≤ inlet pressure≤ 50kPa
- Quality: No dust, moisture, tar (external safety filter and optional gas washing unit)
- Operating conditions: Tamb : -5°C to 50°C / Pamb : 86 to 108 kPa / RH : 0-90% non-condensing
- Response time (T90): ≤ 15 sec (NDIR)
- Communication interface: 4-20mA output; RS232/RS485
- Power supply: External 110V-220 VAC-50Hz
- Dimensions and weight: Gas analyser :800(L) x 600 (H) x 300 (W) mm / ± 60kg
- Landfill
- Sewage treatment
- Anaerobic digestion
- CDM projects
- Medium and large size biogas power plant
