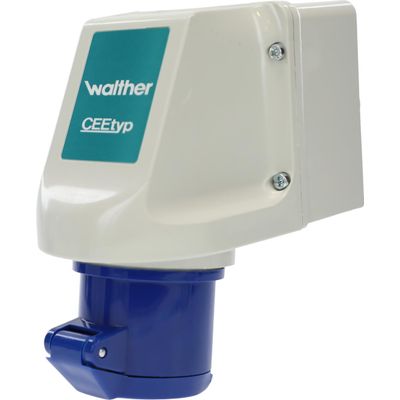

Walther Electric - Model 111409 -Surface Mount Receptacle Device
Walther Electric 111409 Surface Mount Receptacle includes five (5) concentric knockouts for 3/4" & 1" cables. Surface Mount Receptacles are a handy way to add electrical flexibility in areas where the walls are comprised of cinder block.
Most popular related searches
- SKU: iec-1620A-111409-BLU
- UPC: 4015609009367
- Condition: New
- Availability: Usually ships 1-2 business days
- Weight: 0.83 LBS
- Width: 8.00 (in)
- Height: 8.00 (in)
- Depth: 8.00 (in)
- Shipping: Calculated at Checkout
Bulk Pricing: Buy in bulk and save
- DEVICE TYPE: Wall Mount Receptacle / Surface Mount Receptacle
- AMPS: 16A / 20A
- ENVIRONMENTAL RATING: IP44 Splashproof
- POLES & WIRES: 4 Wires = 3 Poles +Earth Ground (3P+G)
- CLOCK POSITION: 09 Hour
- VOLTAGE (North America): 3ø 250 VAC
- VOLTAGE (International): 230 VAC
- COLOR: Blue
- ANGLE OF DEVICE: Angle 90°
- CERTIFICATIONS (North America): UL Listed & CSA Certified
- CERTIFICATIONS (International): CE, ENEC10, VDE, CCC, & EAC
- PAIRS WITH: 218409 Plug, 212409 Plug, 210409 Plug and more
- HIGH IMPACT THERMOPLASTIC HOUSING - Impact and corrosion resistant insulated non-metallic housing
- COLOR-CODED – All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- FIRST MAKE/LAST BREAK?(FMLB) - Connectors ensure the ground path is established before any other power or signal connections are made preventing making or breaking the circuit under load
- SURFACE MOUNT – Includes 4 pre-drilled holes for quick and easy mounting
Easy wiring - Terminals and screws are in the open position, L, N and PE are clearly marked for users to recognize. Surface wiring systems are used to extend electric current and power from existing outlets or fixtures to a new location, without having to tear up floors or cut into walls or ceilings.
