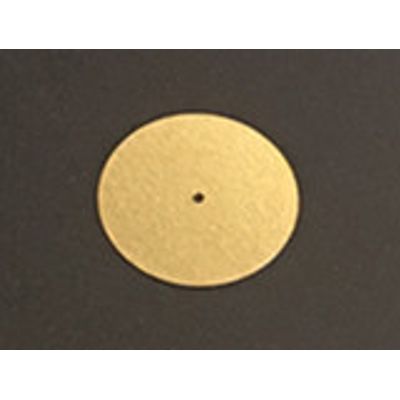

Walthy - High Power Pinhole Aperture
High Power Pinhole Apertures are used in high energy and power applications. The pinhole apertures are used in the optical transfer assembly of a system using a powerful laser as a source.A typical example is the aperture within a spatial filter assembly.
Most popular related searches
- Standard Material: Copper, Gold coated Copper
- Diameter: 9.5mm or customized
- Thickness: 0.05, 0.1mm or customized
- Pinhole size: 1-1000um, high power slits are also available.
- Centering: +/-0.01mm
- Pinhole/Aperture Tolerance: 5% or 10%, depends on the specific dimension
- Finish: Can be gold plated, both sides. Custom accpeted
- Custom Pattern and Shape: All available, including round, rectangular, square, triangle, hexagon etc
- High precision slits and pinhole apertures, chrome-coated glass slits are all available, including mounted slits and pinholes.
- We accept customization. If you have other patterns or requirements, pls contact us for more information.
