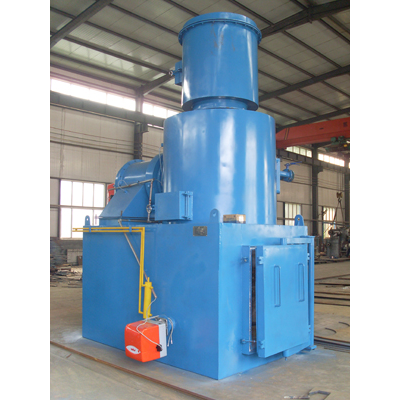

Clover - Model YD-200 -Waste Incinerator
YD Model incinerators include YD model and YDC moel, burning rate from 10-600kgs per hour. Heavy duty combustion chamber and up to 600kgs per hour capacity.
Most popular related searches
combustion chamber
secondary combustion chamber
incineration
incinerator
waste incineration
natural gas burner
gas burner
incineration waste
burner
oil burner
- Model: YD-200
- Burning Rate: 200 kgs/hour
- Feed Capacity: 400 kgs
- Paimary Combustion Chamber: 2000 Liters
- Secondary Combustion Chamber: 500 Liters
- Mix Combustion Chamber: Yes
- Smoke Filter Chamber: Yes
- Feed Mode: Manual
- Voltage: 220V/380V
- Power: 1.03Kw
- Fuel Type: Diesel Oil/ Natural Gas/LPG
- Burner: Italy Original
- Oil Consumption (Diesel Oil): 20-44 kg/hour
- Gas Consumption (Natural Gas): 12–41.2 m3/hour
- Internal Dimensions: 180 x 115 x 96cm (paimary chamber)
- External Dimensions: 270 x 185 x 380cm (without chimney)
- Temperature Monitor: Yes
- Oil Tank Capacity(if oil fuel): 300 Liters
- Door Opening: 59 x 81cm
- Chimney Length: 10.0 Meters
- Chimney Type: Stainless Steel
- Equipment Gross Weight: 7600 kgs
- Operation Technical Specifications
- Paimary Chamber Temperature: 800?–1000?
- Secondary Chamber Temperature: 1000?-1200?
- Residency Time: 2.0 Sec.
- Burning Efficiency: >98%
- Waste Lower Calorific Power: 3000Kcal
