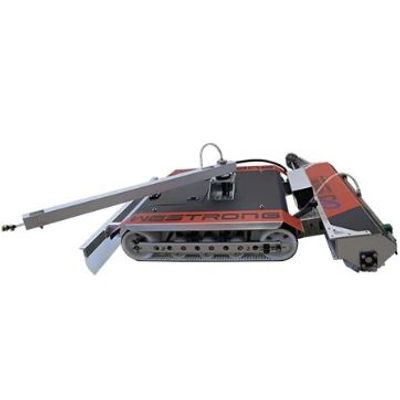

Westrong Clean - Model BQ-1000 -Water Pipe Solar Panel Cleaning Robot
The BQ-1000 Water Pipe Solar Panel Cleaning Robot is a highly efficient photovoltaic cleaning device designed for optimized maintenance of solar panels. Its roll brush, with a length of 1000mm, ensures comprehensive cleaning while its lightweight and robust build enhances ease of use. The modular design simplifies both installation and transit, and the use of special anti-skid tracks minimizes wear on solar panels while improving mobility. It can operate effectively on panels with up to a 20-degree incline and can transition between different panel sections with ease. Powered by a 48V20Ah lithium battery, the BQ-1000 can clean up to 2000 square meters per hour, operating at a speed of 40 meters per minute on horizontal surfaces. With an ingress protection rating of IP65, it withstands environmental challenges, making it suitable for various conditions. The device requires a recommended water flow of 14L/min at 12-14Mpa for optimal performance.
The total length of the roll brush of BQ-1000 photovoltaic cleaning robot is 1000mm, the body is light and solid, and the modular combination design makes the installation and movement of each operating system of the robot more convenient. BQ series photovoltaic cleaning robot uses special material anti-skid track, which will not cause friction damage to photovoltaic panels. In addition, the friction is stronger in case of water. It can move freely on 20 degree photovoltaic panels and realize the span between different photovoltaic panels.
BQ1000 photovoltaic cleaning robot has a fast cleaning speed, the horizontal panel can reach 40m/min, and the cleaning efficiency can reach 2000m2/h.The BQ1000 uses 48V20Ah lithium battery, which can work for 5 hours at a time.
- Machine size (L * w * h) : 1210*1120*350mm
- Chassis weight : 22kg (excluding battery roller brush)
- Roller brush weight : 10kg
- Battery weight : 7.2kg
- Total weight : 40.7kg
- Roller brush length : 1000mm
- Scraper length : 1000mm
- Lithium Battery Specification : 44.8V 20Ah
- Travel speed : 40m / min (horizontal panel)
- Cleaning speed : About 2000m2/h ①
- Roller brush speed : 240r/min
- Remote control distance : 50m
- Gradeability : < 20 ︒
- Horizontal crossing capacity : 400mm
- Track width : 80mm
- Length of equipped water pipe : 100m
- Ingress Protection : IP65
- Recommend water flow : 14L/min, 12-14Mpa
