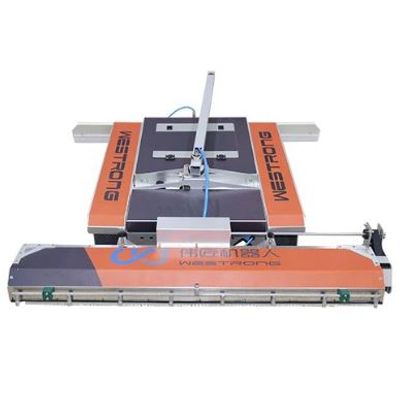

Westrong Clean - Model BQ-1200 -Water Pipe Solar Panel Cleaning Robot
The BQ series distributed photovoltaic cleaning robots represent advanced technology in the field of solar panel maintenance. With models such as the BQ-1200, BQ-1000, BQ-700, BQ-600, and BQ-500, each unit is designed to cater to different scales of photovoltaic systems, from small rooftop installations to larger distributed stations. The BQ-1200 is noted for its international advanced design concepts, featuring a lightweight but robust construction, making it easily maneuverable. The BQ-1000 features a 1000mm roll brush that aids in efficient cleaning, while the modular design allows for easy installation and movement. The BQ-700, designed for small to medium setups, and the BQ-600, similar in chassis to the BQ-500, serve niche market needs for cleaning efficiency and ease of transportation. Each robot offers a high-end remote-control operation, supporting enhanced solar panel performance through effective cleaning.
BQ-1200 distributed photovoltaic cleaning robot adopts the international advanced cleaning robot design concept. The body is light and solid, with compact structure. It adopts a modular combination installation method, which is very convenient to move and install, and has a wide range of applications. It can be used in different photovoltaic power stations to clean different photovoltaic arrays. WESTRONG CLEAN is equipped with a special anti-skid track, which can increase the contact area with the photovoltaic panel. When washing with water, it will not damage the panel surface, and will not slip. It is safe and reliable to use. WESTRONG CLEAN photovoltaic cleaning robot runs fast. The front and rear ends of the robot are equipped with efficient cleaning devices. Five times of cleaning effect can be achieved in one walk. The cleaning efficiency is high and the effect is good. WESTRONG CLEAN PV cleaning robot is controlled by remote wireless remote control, which is more flexible to use.
- Machine size (L * w * h) : 1300*1320*400mm
- Chassis weight : 26kg (excluding battery roller brush)
- Roller brush weight : 13kg
- Scraper weight : 2.0kg
- Battery weight : 7.2kg
- Total weight : 48.2kg
- Roller brush length : 1200mm
- squeegee length : 1200mm
- Lithium Battery Specification : 48V 20Ah
- Travel speed : 50M / min (horizontal panel)
- Cleaning efficiency : 2000-3000m2/h ①
- Roller brush speed : 300r/min
- Remote control distance : 50m
- Gradeability : < 20 ︒
- Horizontal crossing capacity : 400mm
- Track width : 100mm
- Length of equipped water pipe : 100m
- Ingress protection : IP65
- Recommend water flow : 14L/min, 12-14Mpa
