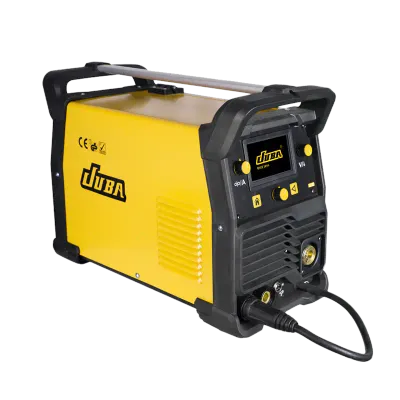

JUBA - Model MIG-200 -Welder

The MINI MIG/MAG/MMA Welder by Zhejiang Juba Mechanical & Electrical Co., Ltd. offers an advanced welding solution with an output current range of 40-200A. It is robustly designed with a large and clear LCD display that shows various welding parameters. Users have the flexibility to choose from stored welding data to achieve optimal welding results. This versatile machine supports multiple welding techniques, including MIG/MAG, MMA, TIG, and FLUX, and features an optional Power Factor Correction (PFC) function, making it suitable for different input working voltages. The welder operates on a power voltage of 230V with a frequency of 50/60Hz and provides a no-load voltage of 55V. With an efficiency of 85%, it has a duty cycle of 35% and comes with an insulation class F. The welder is protected under class IP21S, weighs 18 kg, and has dimensions of 560×365×480 mm. It supports welding wire diameters ranging from 0.8 to 1.0 mm and usable electrode sizes from 1.6 to 4.0 mm, making it a highly functional and efficient tool for various applications.
