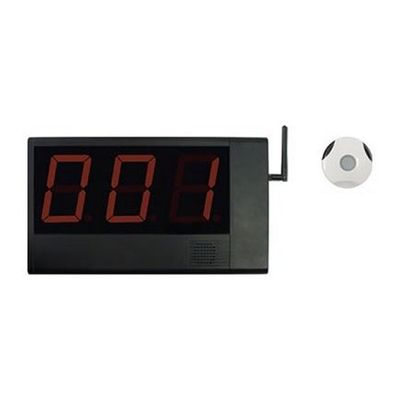

WENSHING - Model WS-TSB -Wireless Table Service Bell
This product is wireless, and doesn´t need to be installed. Customers can get best service in short time and with least manpower. It can be used in many occasions, like restaurants, hospitals, bloodmobile, ticket offices, amusement parks, banks financial center, and so on. The product includes one main device and Install up to 998 service calling systems, also there are 16 types of ring tone ***ions for you to choose. This product comes with a rope for service calling systems to fix on tables and so on.
Most popular related searches
- High sensitivity wireless connection with up to 150 meters transmits range.
- Install up to 998 service calling systems in single area.
- 16 types of ring tone ***ions with adjustable volume.
Receiver(SCR)
- Frequency : 433MHz/868MHz/902MHz
- Sensitivity : [email protected] SINAD
- Modulation : FSK
- Remote Distance : Max 150M(open environment)
- Display Type : 4"7 stage displayer X 3
- Power Supply : DC 12V/1A Stable voltage power supply
- Power Consumption : Stand by : 28mA;Active : Max700mA
- Operation Temperature : -10?~40?
- Storage Temperature : -20?~60?
- Storage Humidity : 10%~90%
- Size : 372mm(L) X 213mm(W) X 45mm(H)
- Others : Status LED indicator X4
Transmitter(SCT)
- Frequency : 433MHz/868MHz/902MHz
- RF Power : 10mW
- Modulation : FSK
- Power Supply : Alkaline battery (AAA) X 2
- Power Consumption : Standby : 20uA; Active : 37A
- Battery Life : 6000times
- Operation Temperature : -10?~55?
- Storage Temperature : -20?~60?
- Storage Humidity : 10%~90%
- Size : 68mm(D) X 27mm(H)
- Others : Status LED indicator X1(Green),Low Battery LED X (Red)
