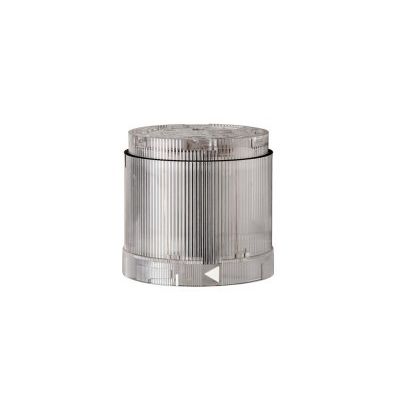

WERMA - Model 24VDC MC -LED Perm. Light Multicolour
LED permanent light element from the KombiSIGN 70 series: 7 colours in one element. Colours can be controlled as required via terminals in the connection element. Positive and negative control logic. Bit-coded control enables the. Display of the three basic colours with only two PLC outputs.
Most popular related searches
- Part No.: 843.450.55
- Diameter: 70 mm
- Voltage: 24V DC
- Signal effect: LED Permanent
- Colour: multi colour
- Protection rating: IP54
Mechanical data
- Height: 66 mm
- Diameter: 70 mm
- Materials: PC
- Dome colour: Clear
- Protection category: IP54
- Working temperature minimum: -20°C
- Working temperature maximum: +50°C
- Weight with packaging: 103 g
- Product weight: 89 g
Electrical data
- Operating voltage: 24V
- Operating voltage type: DC
- Operating voltage tolerance: +/- 10%
- Rated operational voltage: 24 VDC
- Rated operational current: 120 mA
- Rated inrush current: 500 mA
- Protection class: Protection class 2
- Pollution degree: 3
Optical data
- Light source: LED
- Light colour: MC 7 colours
- Optical signal image: Permanent
- Service life optical: 50,000 h maximum
Approval data
- Conforms with CE: Yes
- Conforms with RoHS directive: Yes
- WEEE: Yes
- Conforms with ATEX-directive: No
- Conforms with CCC: No
- Conforms with UL: cULus
- UL Type Rating: Type 12
- Conforms with FCC: No
- Conforms with IC: No
- EAC certificate available: Yes
- Conforms with UKCA (Importer): Yes (WERMA (UK) Ltd.)
- Conforms with CMIM: No
- Conforms with AS-I: No
- ICAO Certification: No
- Conforms with DNV: No
- Conforms with RoHS CN: No
- Conforms with VdS: No
