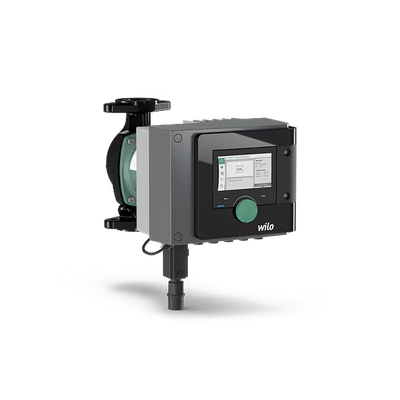

Wilo - Model Stratos MAXO -Wet Rotor Circulator Pump

Most popular related searches

Intuitive operation by application-guided settings with the setting assistant plus the combination of a new display and control knob using the Green Button Technology.
Maximum energy efficiency through the combination of optimised and innovative energy-saving functions (e.g. No-Flow Stop).
Optimum system efficiency thanks to new and innovative intelligent control functions, such as Dynamic Adapt plus, Multi-Flow Adaptation, T-const. and ΔT-const.
Latest communication interfaces (e.g. Bluetooth) for connection to mobile devices and direct pump networking for multi-pump control via Wilo Net.
A clearly arranged and spacious terminal box and the optimised Wilo-Connector ensure maximum convenience in electrical installation.

A combination of optimised and innovative control modes provides maximum energy efficiency
Highest system efficiency with the innovative “Multi-Flow Adaptation” and energy savings of up to 80%
Sustainable and carbon-neutral production and processes in our European factories
Full transparency of the pump`s operating status via remote access to save resources compared to on-site assessments

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Permissible temperature range 14 °F (-10 °C) to 230 °F (+110 °C)
Mains connection:
- 1~115 V, 50/60 Hz (depending on type),
- 1~230 V-240 V, 50/60 Hz
Enclosure: Type 2
Flange connection: 1.25, 1.5, 2 and 3 inch
Max. operating pressure: 145 psi
Insulation class: F
