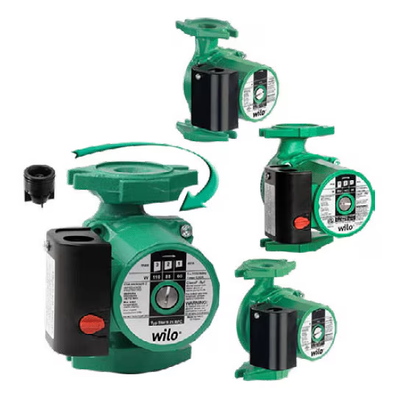

Wilo - Model Star-S -Wet Rotor Circulator Pump
FromWilo USA LLC
Wet rotor circulation pump, with flanged connection. (Flange perpendicular to shaft). Pre-selectable speeds to adjust the capacity on “S” versions. Cast iron body for hot-water heating systems of all kinds, industrial circulation systems, cold-water systems and air-conditioning systems.
Most popular related searches
rotor circulator pump
hot water heating system
heating water system
heat circulator
building heating
carbonization
geothermal
concentrated solar
heat pump
Design type
Wet rotor circulation pump, with flanged or union connections. Pre-selectable speeds to adjust the capacity on "S" versions
Application
Hot Water Heating Systems
Chilled Water
- Air Conditioning Systems
- Water/Glycol concentrations up to 50%
- Solar
- Geothermal
- Max. Flow: 38 GPM
- Max. Head: 33 feet
Equipment/function
- 3 manual selectable speed stages ("S" type only)
- Reliable wet rotor technology
- Quick connect wiring
- Powerful starting torque
- Ultra quiet
- Installable hi-temp check (RFC model)
- RFC Patented Rotating Flange: US 8,297,664 B2
Technical data
- Max Temp Range: 14°F to 230°F (-10°C to 110°C)
- Max Amb Temp: 104°F (40°C)
- Electrical Connection: 1~115v, Star S33 available in 1~115v, 230v
- Max Working Pressure: 140 PSI (10 Bar)
Materials
- Cast Iron Volute
- Engineered Composite Impeller
- Stainless Steel Shaft
- Carbon Impregnated Bearing
- Steel Terminal Box
Scope of delivery
- Pump
- Flange gaskets
- Installation and operating instructions
Options
- Ventilation pump Star-RSL 25/6 with automatic ventilation connection
- Special version 25/4 and 25/6
- Overall length 130mm (cast iron)
- Overall length 180mm (red bronze)
- Reliable wet rotor technology
- Quick connect wiring
- Powerful starting torque
- Ultra quiet
- Installable hi-temp check (RFC model)
- RFC Patented Rotating Flange: US 8,297,664 B2
