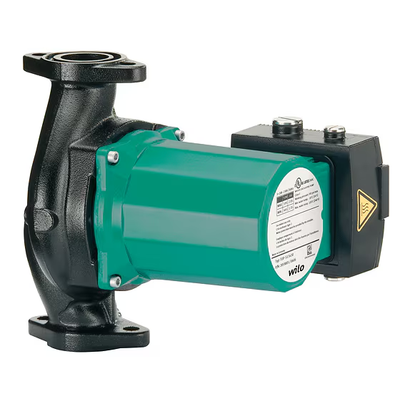

Wilo - Model TOP-S -Wet Rotor Circulator Pump
FromWilo USA LLC
Your advantages: No mechanical seal. Quiet, low maintenance wet rotor circulator. Two-speed operation on all voltages. Automatically vented. Cataphoretically coating prevents corrosion. Sturdy cast aluminum electrical box. Short flange to flange dimension.
Most popular related searches
Design type
Single stage wet rotor pump with flanged connection. Pre-selectable speed stages for capacity adjustment
Application
- All types of Hot Water Systems
- Closed Cooling Circuits
- Air Conditioning Systems
- Industrial Circulation
- Water/Glycol concentrations up to 50%
- Solar
- Geothermal
- Max. Flow: 290 GPM
- Max. Head: 70 feet
Equipment/function
- Two pre-selectable speeds for capacity adjustment
- Pump flanges - 2 bolt oval 1 ¼" and 1 ½" – 4 bolt 2" pump flange – 4 bolt 3" 125 # raised face ANSI
- Cataphoretic coated pump housing
- Thermal overload motor protection, power on and reverse rotation (three phase only) lights
- Cable feed both sides to facilitate installation
Materials
- Pump housing: Cataphoretic coated cast iron or bronze
- Impeller: Engineered composite (PP - 50 % GF)
- Shaft: Stainless steel
- Bearing: Metal-impregnated carbon
Scope of delivery
- Pump
- Flange gaskets
- Installation and operating instructions
Options
- Pumps 3~400V
- Motor with internal protection or with integrated motor protection
- Collective fault lamp and contact for collective fault signal (depending on type of pump)
- Direction of rotation telltale lamp
- Pumps 1~230V
- Motor with internal protection or full motor protection in conjunction with Wilo relay
- Power supply 1~115/230 V, 60 Hz / 3~208/230/460 and 575 V, 60 Hz
- Fluid temperature: -14 °F to + 248°F (-10 °C to +120 °C)
- IP rating H
- Max. operating pressure: 145 PSI (10 bar)
