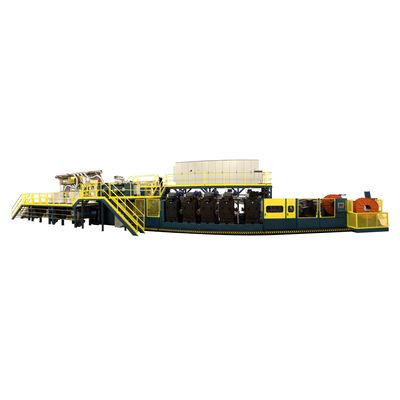

Sovema - Wide Strip Casting and Rolling Lines Machine
The perfect solution to meet the quality and production needs of the most demanding battery manufacturers. The laser system can work in a loop with the finishing rolling mill for continuous strip thickness control, with a precision of 1.5 µm. This option can be installed as a retrofit on all existing machines. The system can work in a loop with the finishing Rolling Mill to guarantee high product quality and significant lead savings in the continuous production process.
6.5
Raw Strip Production Rate (T/h)
2.5
Raw strip Casting Speed (m/min)
185 to 300
Final Strip Width (mm)
With a tolerance of +/- 0.1 mm
0.7 to 1.2
Final Strip Thickness (mm)
With a tolerance of +/- 0.01 mm
Two Systems in One Line
The WSC TR320/14 is also available in line with Sovema Punchplus for the continuous production of punched strips. The combined system reduces the overall footprint of the grid production line, avoiding the storage of semi-finished products.
Strip Slitting Device
An optional system can be supplied to adapt the machine’s high productivity to expanded metal application. Using six cutters, the slitting device divides the wide strip into three narrow strips with a maximum single strip width of 100 mm.
The system is perfectly integrated with the scrap recovery system for remelting the scraps.
- High Quality
- High Productivity
- Easy Maintenance
- Accurate Process Supervision
