Wilden Pump - a PSG Dover Brand

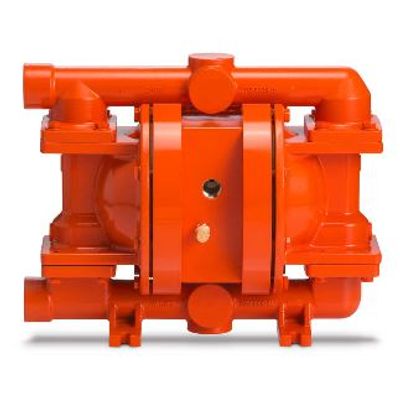

Wilden Pro-Flo - Model SHIFT Series - PS220/PS230 -25 mm (1") Bolted Metal Pump
The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden`s bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden`s bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
Most popular related searches
- NPT or BSPT threaded inlet/discharge liquid connections (PS220)
- DIN or ANSI flanged inlet/discharge liquid connections (PS230) that don`t require welding or nipple attachment
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow - more gallons pumped per SCFM
- Reduced air consumption and kilowatt usage
- Largest chemical compatibilities
- Portable and submersible
- Large-solids passage
- High suction lift
- Ease of operation and maintenance
- Flexible internal adjustment on manifolds
- Increased on/off reliability
- Longest Mean Time Between Repair (MTBR)
- Buna-N -12°C to 82°C (10°F to 180°F)
- EPDM -51°C to 138°C (-60°F to 280°F)
- FKM -40°C to 177°C (-40°F to 350°F)
- Geolast® -40°C to 82°C (-40°F to 180°F)
- Neoprene -18°C to 93°C (0°F to 200°F)
- PTFE* 4°C to 104°C (40°F to 220°F)
- Polyurethane -12°C to 66°C (10°F to 150°F)
- Saniflex™ -29°C to 104°C (-20°F to 220°F)
- Wil-Flex™ -40°C to 107°C (-40°F to 225°F)
