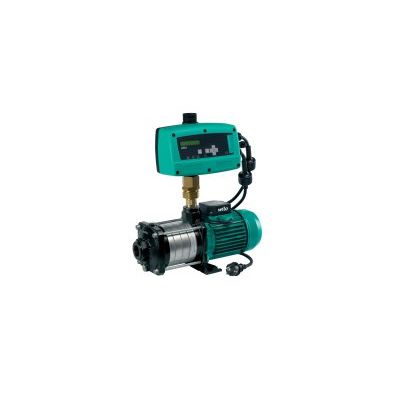

Wilo - Model EMHIL -Non-Self-Priming Water Supply Unit with Frequency Converter
FromWilo SE
Heavy-duty multistage pump with stainless steel hydraulics. Simple operation and adjustment via display with plain text display, status indicator, analysis function, adjustment of the control parameters (PID), freeze protection. Plug & Pump, pre-assembled and fitted with connecting cable. Meets the EMC standards for domestic use (EN 61000-6-2 and EN 61000-6-3). Float switch can be connected optionallly.
Most popular related searches
Application
- Water supply
- Rainwater utilisation
- Irrigation and spraying
- Maximum operating pressure: 10 bar
- Max. fluid temperature: 40 °C
- Min. fluid temperature:0 °C
- Maximum ambient temperature: 50 °C
- Mains connection: 1~230 V, 50/60 Hz
- including 1.4 m mains connection and plug
- including EMC filter
- with built-in pressure and flow monitors
- Multistage pump with stainless steel hydraulics
- Pre-cabled and pre-assembled with rotatable connections and shut-off valve
- Fully automatic protection against:
- Excess current
- Dry running
- Undervoltage and overvoltage
- Excess temperature
- Short-circuit
- Stage chambers 1.4301
- Impellers: 1.4301
- Shaft: 1.4028
- Mechanical seal: Si-carbide / carbon
- Pump housing: Cast iron
- Gasket: EPDM
- Rotatable connection: Brass
- Shut-off valve: POM
1 control device Electronic Control with:
- 1 series MHIL pump with 1 Electronic Control (1.4 m connecting cable)
- 1 rotatable connection and 1 check valve
- One each Installation and operating instructions for MHIL pump and for Electronic Control
