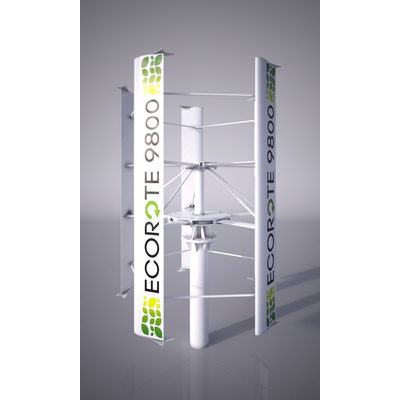

Ecorote - Model 9800 - Wind Turbine
The wind turbine allows conversion of 71% (0.42 of Betz number) of wind energy into electricity. The materials from which our products are made come from Polish producers comprising 98 out of the total. The disk generator, which converts the kinetic energy of wind into electricity, has been developed so that it does not have friction elements, thanks to which it excludes maintenance and service activities. Turbine blades because of the use of an extruded aluminium profile with seamless monolith structure are characterized by resistance to thermal expansion effect caused by heating. In addition, white reflective paint with a C5 + M resistance class was applied to the turbines. Moreover, steel components are galvanized and aluminium ones are anodized to provide more effective corrosion protection.
- Turbine power: 9800W
- Impeller diameter: 4,3m
- Turbine high: 5,6m
- Starting speed: 1,2m/s
- Rated speed: 12m/s
- Total weight: 550 kg
- Winds and arms: Aluminium structure with resistance tested in extreme
- Brake: Electromagnetic
- Operating system: On grid/Off Grid/ Hybrid
- Controller: Microprocessor
- Inverter output voltage: 1 x 230V AC or 3 x 230 V AC 50Hz
- Noise level acc. to
- PN-EN 61400-11: <46dB at 8m/s in the distance of 60m
- Operating temperature: From -40°C to +70°C
- Corrosion protection: Anodizing, galvanizing, powder coating C5+M
- Mast types: Concrete posts, metal posts, lattice work and roof platforms
- Mast sizes: From 2 to 25m
- Compliance with standards: CE, IEC 61400-2, 61400-11
- Wind-independent operation - The advantage of Vertical Axis Wind Turbines (VAWT) is that they operate regardless of the wind direction. As they do not need sophisticated technology of the wind setting, they are cheaper, lighter and more durable
- Durability - Thanks to numerous strength tests in aerodynamic tunnels as well as in natural conditions, the turbines are resistant to very strong wind and changing weather conditions
- Lack of service - The disc generator, which converts the kinetic energy of wind into electricity, has been designed so that it does not have friction elements, thanks to which maintenance service is not required. The type of bearings used in ECOROTE turbines is covered under warranty by the manufacturer for at least 20 years
- High quality - because of the use of an extruded aluminium profile with seamless monolith structure, turbine blades are characterized by resistance to thermal expansion effect caused by heating
- In addition, a white reflective paint with a C5 + M resistance class has been applied to the turbines. Steel components are galvanized and aluminium ones are anodized in order to provide more effective corrosion protection
- Polish product - The materials from which our products are made come from Polish producers comprising 98% out of the total.
- Simple design - Turbines are sent in such a way that the least amount of work is necessary to assemble a complete turbine. The most difficult sets of elements are combined in the company, thanks to which the user is left with very simple and intuitive assembly.
- Silent work - Ecorote turbines are very quiet, they do not cause noise or turbulence due to the use of a series of vibroinsulation
- Efficiency - ECOROTE turbines allow conversion of 71% (0.42 of Betz number) of wind energy into electricity
- Low start speed - depending on the model, ECOROTE turbines start working with a wind speed of 1.2 m / s
