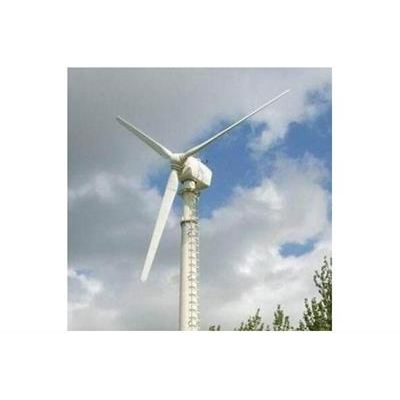

Senwei - Model SW-40kw -Wind Turbine
SENWEY low cost 40kW wind turbine can be applied in both on-grid and off-grid systems. The output is three phase AC and it can drive loads below 50kW.
Most popular related searches
wind turbine
solar panel system
off-grid system
grid system
solar panel
energy production
inverter
AC drive
electric motor
power inverter
- low cost and cheap, higher effective, cost-effective to work with solar panel system;
- Adopting fiber glass nacelle, good heat dissipation, and attractive appearance;
- All the core components selected from international supplier like Siemens, Schneider, Brand guarantees the quality;
- 100% full power output with independance inverter; not alternator directly connect with grid;
- Touch screen and remote control simplify the system operational status detecting;
- Triple protection, ensure the operational security.
- 18m Hydraulic tower available for easier maintenance and replacement; save much cost;
- Rotor diameter: 15.0m
- Blades quantity: 3pcs
- Direction: always upwind
- Blades material: Glass fiber reinforced plastic
- Rated output Power: 40Kw, 40000W
- Maximum output Power: 50000W
- working voltage: DC240/500V,AC220V/380V
- Annual average energy production: 110MWH (in average 8m/s wind speed)
- working wind speed: 3-25m/s
- Initial wind speed: 3.0m/s
- Nominal wind speed: 14.0m/s (50km/h)
- Storm-stand: up to 50m/s
- Max rotate speed: 200r/min
- Wind turbine type: Three-phase, PMG Alternator
- Working temperature: from -40 to +60 C
- Blade Pitch Control: Fixed Pitch
- Over Speed Protection: Auto-furl
- Speed regulation methods: Yawing motor and electrical magnet switch
- Stop Methods: Manual Brake + Hydraulic Brake+ Auto Brake
- Gearbox: None, Direct Drive
- Batttery full charge time: about 8 hours
