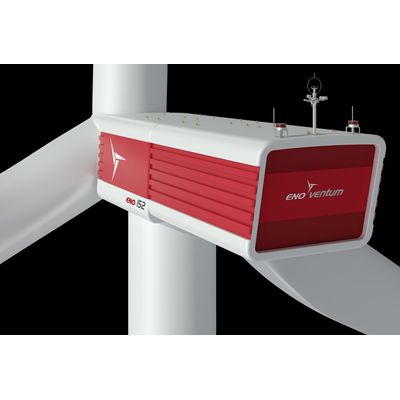

ENO - Model 152 -Wind Turbine

SHARE

General: Rated Power: 5.6 - 6.0 MW. Cut-in wind speed: 3 m/s. Rated wind speed: 13 m/s. Cut-out wind speed: 25 m/s. Tilt angle: 6°.

Most popular related searches
synchronous generator
wind turbine
inverter power
energy hub
inverter
power generation

Rotor

  • Diameter: 152 m
  • Nominal speed range: 5.0 - 10.2 rpm
  • Swept area: 18.145 m²

Rotor blade

  • Material: GFK / CFK
  • Length: 74.0 m

Gears

  • Model: Planetary-/spur gearing
  • Gear ratio: approx. 1:150

Generator

  • Type: Synchronous generator
  • Design: slip ringless / brushless excitation
  • Tower (hub height): 124 m, 165 m

Converter

  • Type: Full power converter
  • Model: Modular IGBT inverter topology

Sound power level

  • with serrations: 106.8 dB(A)

Wind class

  • hub height: 124 m    165 m
  • Wind class according to IEC ed.3: IIA
  • Wind zone according to DIBt 2012:
  • WZ 3, GK II  WZ 3, GK II

vw, hub height: reference yield in  MWh/a

  • 6.0 m/s: 13,292.80
  • 6.5 m/s: 15,593.60
  • 7.0 m/s: 17,826.20
  • 7.5 m/s: 19,953.70
  • 8.0 m/s: 21,950.10
  • 8.5 m/s: 23,797.00
