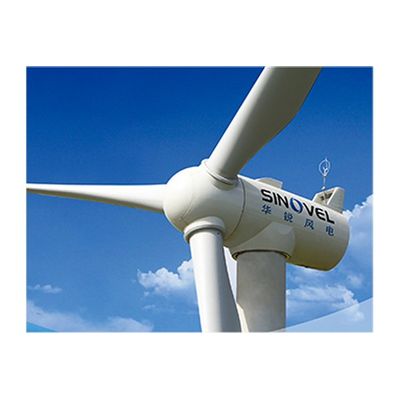

Sinovel - Model SL1500 Series -Wind Turbine

Based on big data analysis of over 8000 sets of wind turbine, key components, electrical system and remote control system are optimized; turbine performance and reliability are improved with better energy production;

Leading technologies including load optimization control, fault self diagnosis and advance warning, sharing information with neighboring turbines, program upgrading, turbine commissioning and fault eliminating bring to customer better reliability and maximum availability;

Control technologies including dynamic fine pitch and yaw system, smart soft cut-out and grid connection optimization maximizes power generation and customer profitability;

Technologies including wind farm power prediction system, smart security system , noise control , fine data management system successfully meet the needs of customer;

Satisfying with the most critical grid code requirements in the world. Smart adjustment on active and reactive power output. Reaching international advanced level on high & low voltage ride through and grid adaptability.

Pitch System

• Super-capacitor as back-up power ensures safety stop during grid loss;
• Pitch motor and control cabinet located inside the hub makes well lightning protection and sealing.

Gearbox

• Main shaft integrated inside the gearbox making compact structure and site Alignment unnecessary;
• Well lubrication for the main shaft with long lifetime;
• Observation holes for each stage are easy for maintenance;
• Rear-located slip ring improves operational reliability.

Noise Decoupling System

• Two layers of vibration absorber are located at the connection between gearbox and main frame for noise decoupling.

Oil Cooling System

• The oil-to-air heat exchanger is cooled down by external air.
• This brings better cooling and avoids contamination of gearbox hot oil-air.

Ventilating System

• The axial fan located in the rear of nacelle reduced temperature inside the nacelle.

Generator

• High-efficient water-cooled generator with small size;
• Technologies including insulation cover and multi-point earthing eliminate the influence of axial current.
• Nature air cooling system has the advantage of less power consumption, noise, maintenance and well anti-sand effect.

Yaw System

• Yaw system adopts self-lubricated sliding pad.
• No extra lubrication system and yaw brake are needed.

Nacelle Sealing

• Spinner disc in the front of nacelle cover prevents the entering of sand and rain water.

Converter at Tower Base

• Air-cooled converter located at tower base with reliable operation.
