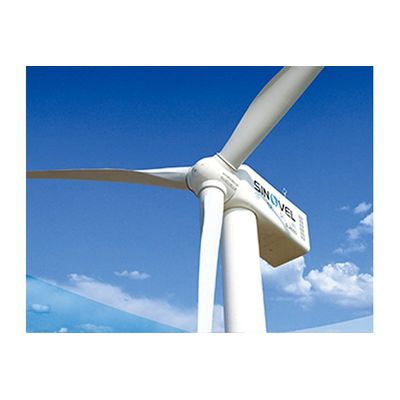

Sinovel - Model SL6000 Series -Wind Turbine

• Unique self-maintenance system makes large component (gearbox, generator etc) replacements possible without large-scale installation vessel;
• Technologies including multi-stage filtration system and temperature & humidity control are applicable to marine atmosphere and bring better anticorrosion performance;
• Compact drive train and load distribution technologies efficiently distribute the load and power transmission and improve turbine reliability and life time;
• Hydraulic support for gearbox has the advantage of good vibration reduction with simple and reliable structure;
• Single-line lubrication system for main bearing, pitch bearing and yaw bearing has the advantage of well lubrication and reliability;
• Reliable nature air cooling system for gearbox and generator has the advantage of less power consumption, noise and maintenance;
• inside the foundation platform. This layout has minimum vibration to the equipment with convenient maintenance;
• Leading technologies including offshore load optimization and control, anti-typhoon control strategy and turbine operation and control under complicated marine environment significantly reduce the turbine load and improve turbine reliability;
• Wind farm and turbine monitoring system with online detection, fault diagnosis and customization makes real time monitoring and advance warning; Smart operation & maintenance are achieved with less maintenance cost;
• Smart technologies including pitch control, fine yaw control, soft cut-out control, adaptive energy acquisition and grid connection optimization control maximize power generation and environment suitability and bring maximum profit ability;
• Leading technologies including smart fault self-diagnosis and operational optimization, sharing information with the neighboring turbines, program upgrading, turbine commissioning and fault eliminating bring to customer better reliability and maximum availability;
• Big data and cloud platform for turbine operation and maintenance data analysis makes automatic and smart operation and maintenance of the wind farm.

Main Shaft

• Compact drive train; High efficient and reliable load distribution technology.

Pitch System

• Super-capacitor as backup power has the advantage of low temperature and fast response; pitch control system inside the hub makes well lightning protection and sealing.

Generator

• High-efficient water-cooled generator with small size;Technologies including in sulation cover and multi-point earthing eliminate the influence of axial current. Nature air cooling system has the advantage of less power consumption, noise, maintenance and well anti-sand effect.

Anti-Corrosion

• Micro-pressure system for offshore turbine prevents nacelle components from salt corrosion. Multi-stage filtration system has high-efficient salt separation.

Rotor

• High-strength glass fibre blade with anti-wear on blade leading edge; reliable lightning protection; Safe and convenient maintenance access inside the spinner.

Cooling System

• High efficient nature air cooling system has the advantage of less power consumption, noise and maintenance.

Helicopter Platform

• Marine helicopter plat form makes nacelle emergency enter possible in case of severe marine conditions.

Maintenance Crane

• Large components self-maintenance system for offshore turbine significantly reduces maintenance cost.

Tower Base Layout

• Main electrical equipments including converter and switch gear are located on the tower base platform. This layout efficiently separates the electrical equipments from vibration with easy maintenance. Water-cooled converter has high efficiency and reliability.
