Deling - Model HD-508DW - Wireless Addressable Heat Detector
This wireless heat detector offers fixed temperature detection, suitable to any household or commercial applications. The detector is made up of an externally mounted thermistor with a specially designed cover that protects the thermistor while allowing maximum air flow. The thermistor reads the temperature from the air it takes in and transmits a signal representing the temperature to the MCU. If the temperature reaches or exceeds the trip point, the detector is triggered. The status LED flashes in red and alarm signal is output. The detector is an ideal unit to detect rapid fire developments in houses, shops, hotels, restaurants, offices, schools, banks, libraries and etc.It has a wireless network alarm function; it can form a wireless LAN alarm system through the host; wireless connection, no wiring, easy installation and construction.

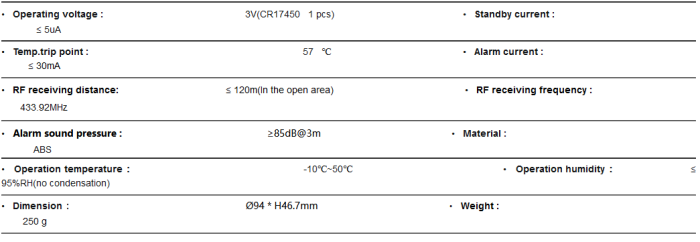

- Product Name Wireless Addressable Heat Detector
- Model HD-508DW
- Voltage DC 3V
- Current Standby Current : ≤ 5uA
- Alarm Current ≤ 30mA
- Alarm Sound Pressure ≥85dB@3m
- Temp.Trip Point 57?
- Material ABS
- Color White
- Dimension Ø94 * H46.7mm
