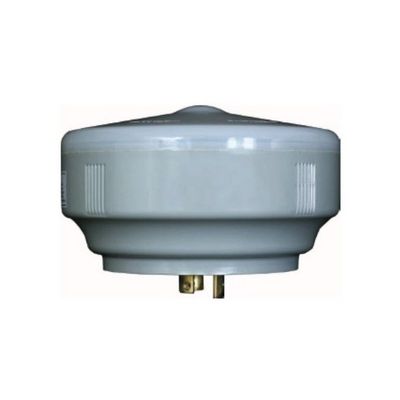

Wireless - Model SLC-3100 - Wireless Lighting Controller

SHARE

The SLC-3100 is an intelligent wireless lighting controller with exceptional fault tolerance and a multitude of features. The SLC-3100 provides intelligent ON/OFF switching, dimming control, optional GPS, highly accurate power metering, analog and digital sensor inputs, and constant status and health monitoring of your lighting fixtures.

Most popular related searches
surge protection
power factor
revenue grade meter
energy meters
energy meter
energy metering
power meter
energy meter monitoring
burner
kWh meter

Photocell in Every Controller
The photocell functionality operates immediately upon installation without minimal dependency on the network.

GPS in Every Controller
The GPS capabilities reduce install times and eliminate future mapping issues. GPS coordinates for each SLC are sent automatically to a Central Management System for overlay on a Google Maps interface. Trilliant SLCs can be ordered with an optional GPS radio. Without GPS, installers have the option to record the pole ID, SLC ID and its Latitude/Longitude location to map them correctly, by using a mobile app available for Apple iOS and Android™.

Extended Surge Protection
CATB surge protection is standard, while CATC surge protection is available as an option.

Full ANSI C136.41 7-pin Dimming Receptacle Support
The SLCs work with any lamp type or manufacturer with full support for all 7 pins on the ANSI C136.41 dimming receptacle for true plug and play installation. Additional controllers (optional) support the addition of digital or analog sensors, such as motion, vehicle counts or environmental sensors through pins 6 and 7.

Revenue Grade Energy Metering SLCs monitor current, voltage, frequency, power factor, kW and kWh, and offer metering accuracy as high as 0.5% (optional) for accurate consumption data and billing.

Remote Control and Scheduling SLCs support multiple lamp control modes such as user configurable ON/ OFF/DIM schedules programmed on a daily / monthly / special events basis, local ad-hoc control, photocell and astro-clock scheduling, and mixed mode scheduling incorporating sensor inputs.

Flexible Dimming Control SLCs support dimming through 0-10 VDC, PWM or DALI interfaces. Fault Monitoring SLCs provide extensive fault monitoring to report on day burners, burnouts, lamp cycling, ballast failures, over/under voltage, abnormal power consumption, low power factors, communication failures and more. All faults are sent to a Central Management System for alarm routing, visualization and fault correction. Alerts can be sent directly to relevant users via emails immediately when they occur. Alerts are time stamped and contain key parameters associated with the fault/ alarm.
