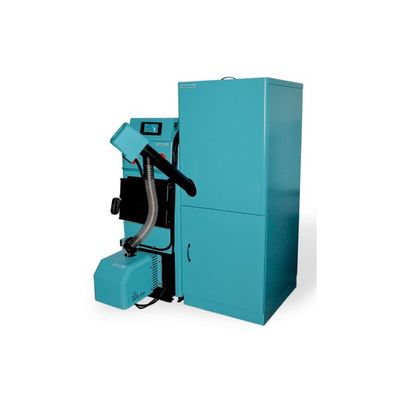

Cm Pelet-set - Model 14–90 kW - Wood Pellet Firing Boilers
Central heating equipment is designed for attaching to new appropriately specified boilers and already inbuild boilers such as EKO-CK P and EKO-CKB P(nominal heat output from 14 to 90 kW) or EKO-CK and EKO-CKB (nominal heat output power 14 to 50 kW). The Cm Pelet-set and the boiler together make a functional unit, i.e. a mini heating system for pellet firing.The automatic functioning of such a mini heating system offers a high level of convenience and makes them suitable for a wide range of users. From an operational point of view, such a plant is comparable for convenience with an oil or gas firing heating system, while the fuel consumption is some 40% more cost effective than an oil fired systems. Pellet is a renewable fuel and ecologically very acceptable.
- The Cm Pelet-set is delivered ready prepared for integration with the boilers EKO-CK P and EKO-CKB P with an nominal heat output from 14 to 90 kW or EKO-CK and EKO-CKB with an nominal heat output from 14 to 50 kW.
- Together with the boiler it creates a functional unit, a mini heating system for pellet firing.
- The mini heating system is controlled by the digital boiler regulator which automatically activates and deactivates the system and keeps heating very comfortable.
- It is possible to connect the mini heating system directly to heating system or through accumulation tank (CAS) with a minimum volume of 10 l/kW and 3-way thermal valve on 60°C or motor powered 3-way mixing valve.
- The fan and the electric heater installed inside the burner, digitally regulated, automatically fires the pellets and keeps the fire in.
- Cleaning, depending on the power of the boiler and the quality of pellets, after one consumed container (200/400 kg) lasts 5 minutes.
- Pellets container (volume 370/800 l) is a constituent part of the system and it is being filled from the upper side, according to need.
- It is possible to install equipment for automatic supply of pellets from a bigger tank through flexible pipes up to 10 metres in distance and up to 4 meters in height, exclusively for ENPlus A1 and DINplus pellets.
- It is possible to install a flap on the burner fan to prevent air from circulating through the boiler when the burner is not working.
- It is possible to install air-cleaning of the burner.
- Option to link several units in a cascade.
- It is delivered dismantled which makes it easier to transport and house.
- Wood pellet is a renewable fuel, and therefore ecologically acceptable.
- It is made out of wood bio-mass scraps extruded into pellets by special machinery.
- Pellets are delivered in various ways: in bags (15 kg or 1000 kg), or as bulk into large, possibly underground, storage tanks (4 – 15 m3) or into basement spaces or sheds.
- Recommended specification for pellets for Cm Pelet-set feeding:
- – heating value >= 4,9 kWh/kg (17,5 MJ/kg)
- – diameter = 6 mm
- – max. length = 50 mm
- – max. humidity = 12%
- – max. ash = 1,5%
