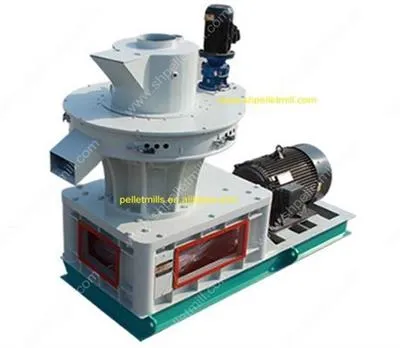

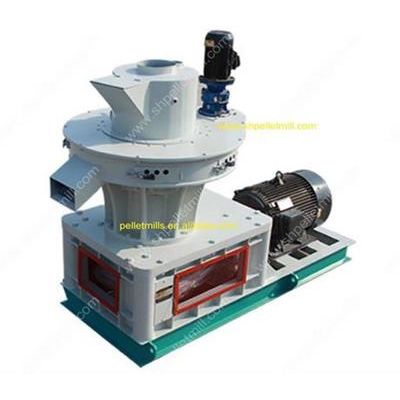

Double-Crane - Model LH560 - Wood Pellet Mill

LH560 pellet mills are patented products with unique design by Shandong Double Crane Machinery Manufacturer Co., Ltd, the professional biomass wood pellet machines producer in China.  Biomass pellet mill is one of  the key machines in the biomass wood pellet line.  Biomass pellet mill has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance.

1. Die static, the roller rotating, and material centrifugal, evenly around.
2. Vertical feed and directly in place. Good heat dissipation.
3. Double layer die, up and down dual use, cost efficiency, and also dual-uses, high energy saving.
4. Ring die, vertical structure, in favor of the thermal cooling of granulation chamber
5. Separate discharge device, ensure the forming rate of pellets.
6. 24 hours working with automatic lubrication.
7. low cost, high capacity, energy saving.
8. Upward mould, special structure, vertically feeding and easier heat dissipation.
9. Die static, roller rotating, material centrifugal and distributed around evenly.
10. The biomass wood pellet equipment price is reasonable.

• Model LH560
• Capacity 1-1.3t/h
• Main motor 90kw
• Feeder motor 2.2kw
• Discharge motor 2.2kw
• Rind die diameter 560mm
• Roller 2pcs
• Diameter of pellet φ6-φ8
• Size 2500×1000×1830mm
• Weight 3.8t
• Noise ≤80dB(A
• Remarks Optional model LS450
