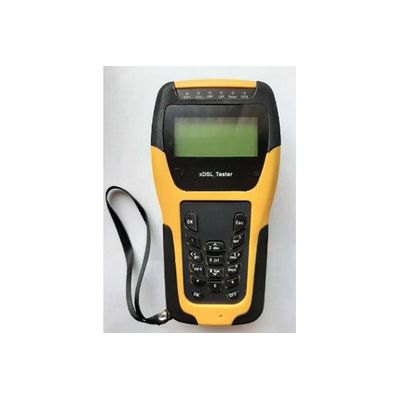

GAOTek - Model GT00ZZ00ZX - xDSL Tester with Data Storage (Multi-Protocol Support)

Handheld device that provides full testing and analysis of ADSL; ADSL2; ADSL2+; READSL quickly and accurately

Most popular related searches

Test objects: ADSL; ADSL2; ADSL2+; READSL
Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
Supports Modem emulation and simulating login to the Internet
Supports ISP login (username / password) and IP Ping test (WAN and LAN PING Test)
Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)
Connects to CO via alligator clip or RJ11
Rechargeable Li-ion Battery
Beep and LED alarm indications (Lower Power, PPP, LAN, ADSL)
Data memory capacity: 50 records
LCD display
Auto shut off if no operations on keyboard
Compliant with all known DSLAMs
Software management
Simple, portable and money-saving

DSL Physical layer test
Modem Emulation (Replace the user Modem completely)
PPPoE Dialing (RFC1683,RFC2684,RFC2516)
PPPoA Dialing (RFC2364)
IPOA Dialing
Telephone Function
DMM Test (AC Voltage: 0 to 400 V; DC Voltage: 0 to 290 V; Capacitance: 0 to 1000nF, Loop Resistance: 0 to 20KΩ; Insulation Resistance: 0 to 50MΩ; Distance Test)
Ping Function (WAN & LAN)
Data upload to computer by RS232 core and software management
Setup system parameter: backlight time, shut off automatically time without operation, press tone, revise PPPoE / PPPoA dial attribute, user name and password, restore factory value and so on.
Check dangerous voltage
Four grades service judge (Excellent, Good, Ok, Poor)
