YAMASTIK - Model 220 Vac / 12-27 VDC - Oil Press Power Supplies-Transformers
The Yamastik oil press power supplies-transformers are used to produce the 12 -27VDC voltage that the 12 or 24 volt oil presses need to operate and serve in cases where there is mains or 220VAC generator power. Their ergonomic design, high quality materials and low weight make them a smart, reliable and economical solution for easy transportation and flexibility of use. Through a wide range of different combinations, Yamastik power supplies serve every device with a need for low voltage and high current supply. With their compact construction and applied technology, they guarantee stability and long-term trouble-free operation.

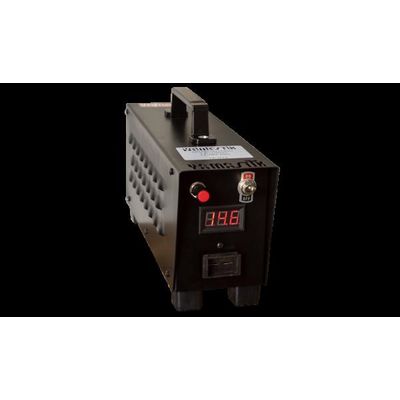

It has a single outlet and is compatible with all the oil presses on the market, incorporating a series of innovative technical features that make it truly unique!
- Output voltage indicator with digital display
- Precise output voltage adjustment with potentiometer
- Given setting accuracy 0.1V
- Output voltage 12-18V or 12-27Vdc
- Stable voltage
- Protection of hypertension
- Solid metal construction with electrostatic painting
- Small size - M x W x H : 33cm x 10cm x 13cm
- Very light 2 kg
It has two outlets with independent adjustment, is extremely lightweight and compatible with all oil presses on the market. Its innovative technical features make it unique in its class!
- Output voltage indicator with digital display
- Precise output voltage adjustment with potentiometer
- Given setting accuracy 0.1V
- Output voltage 12-18V or 12-27Vdc
- Stable voltage
- Protection of hypertension
- Solid metal construction with electrostatic painting
- Small size - M x W x H : 33cm x 19cm x 13cm
- Very lightweight 4 kg
It has four independently adjustable outlets, is extremely lightweight and is compatible with all oil presses on the market. Its innovative technical features make it unique in its class!
- Output voltage indicator with digital display
- Precise output voltage adjustment with potentiometer
- Given setting accuracy 0.1V
- Output voltage 12-18V or 12-27Vdc
- Stable voltage
- Protection of hypertension
- Solid metal construction with electrostatic painting
- Small size - M x W x H : 33cm x 19cm x 26cm
- Very light 6 kg
It has an option to adjust the output voltage via a rotary switch. The output can be adjusted from 12V to 20V with 4 intermediate options (model TP-011) or 12V to 27V with 8 intermediate options (model TP-015).
Dimensions M x W x H : 28cm x 17cm x 12cm / Weight: 6 kg
It has an option to adjust the output voltage via rotary switches. The operator can select a different output voltage using the appropriate switch for each output. Each independent output can be set from 12V to 20V with 4 intermediate options (model TP-010) or 12V to 27V with 8 intermediate options (model TP-012).
Dimensions: 28cm x 30cm x 20cm / Weight: 14 kg
It has analogue indicators for voltage and current intensity and an output voltage setting option via a switch. The two 12V to 27V outputs are controlled simultaneously by a three-position rotary switch mounted on the front panel.
Dimensions: 28cm x 30cm x 20cm / Weight: 14 kg
