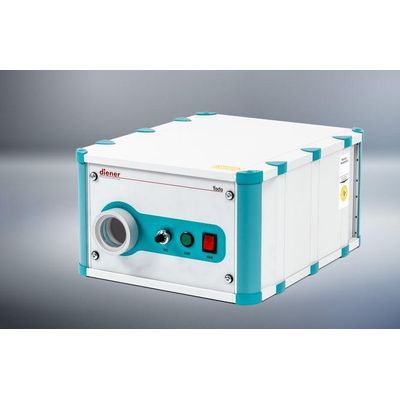

Yocto - Low-Pressure Plasma Systems (Plasma Cleaner)
The Yocto III plasma system is primarily used in the following applications: activation, cleaning.
Most popular related searches
Possibilities of plasma treatment
Materials cleaning
Plasma technology offers solutions for any type of contamination, for any substrate and any post-treatment. In the process, molecular contamination residues are decomposed as well.
Activation of materials
Good wettability is a prerequisite for the adhesion of binding partners in painting, gluing, printing or bonding.
Basic equipment
- Voltage supply: 230 V
Gas supply
- Process gas via filter
- Flow via valve (not adjustable)
- Ventilation via filter
Vacuum chambers
- Borosilicate glass (UHP) round with cover (approx. ∅ 50 mm, L 150 mm)
Electrodes
- A pair of electrodes outside of the vacuum chamber
Controls
- Generator for plasma generation
- 2-stage switch
- Start button
- Power switch
Generators
- Frequencies: 100 kHz: power 0 - 30 W
Vacuum pump
- Installed in the housing
- Oil-free
- Capacity: 0.75 m3/h
