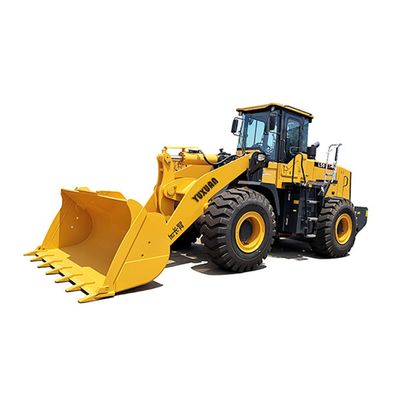

YUXUAN - YUXUAN -loader
1. Many new appearance configurations Single plane layout, modular design heat dissipation system, reliable and efficient, easy maintenance 2. Large space for riding comfort The new high-transparency and widened cab increases the space by 20%, providing excellent vision and comfort; automatic temperature control and air conditioning, comfortable body 3. More stable and long wheelbase Extended wheelbase design, the wheelbase breaks through 3.4 meters, the tilting load of full steering is effectively improved, and the stability of the whole machine is greatly improved 4. High efficiency, fuel saving and strong power Multi-mode work selection switch, you can choose different engine power curves according to working conditions, better fuel economy Electronically controlled high-voltage common rail system, low noise and fast response while upgrading emissions
model 665F
The main parameters
Rated load 6,000kg
operating weight
20,020kg
Bucket capacity
2.8-5.5m³
wheelbase
3,400mm
unloading height
3,100mm
Bucket hinge pin height
4,196mm
gearbox
gearbox form
Electronically controlled fixed shaft gearbox
gearbox gear
F4/R4
Gearbox model
SEM TR200-EH
Torque converter type
Single-stage three-element centripetal
Forward I/Back I
7.6km/h
Forward II/Backward II
15km/h
Forward III/Back III
23km/h
Forward IV/Back IV
39km/h
engine
engine model
WDEC WP10HG240 (China IV)
rated power
178kW
Displacement
9.5L
working hydraulic system
Working hydraulic system form
Quantitative hydraulic system
boom raising time
5.3s
Working device action time trinomial sum
9.7s
Work device system working pressure
18MPa
Braking System
Service Brake Type
Air cap oil caliper disc brakes
Parking Brake Type
Inner hoof drum brake
steering hydraulic system
system form
Quantitative hydraulic priority steering
Working pressure of steering hydraulic system
18MPa
steering angle
38±1°
