Ziegler Electronic Devices GmbH (ZED)

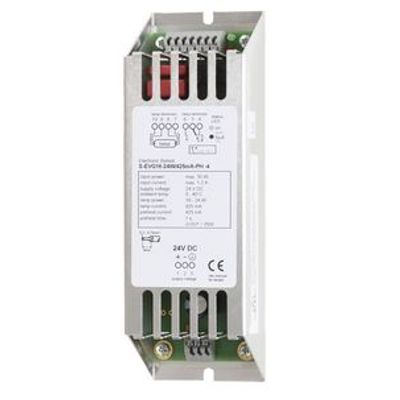

ZED - Model E40PH/24V -Standard Ballasts
Standard ballasts for 4-pin UV-lamps with preheat 24V DC supply. Lamp power: up to 50 W @ 425mA | up to 25 W @ 600 mA.
Most popular related searches
battery supply
solar panel
off-grid system
solar battery
grid system
DC power supply
UPS system
battery solar
- 24V DC lamp drivers for off-grid disinfection systems, for use with solar panel/battery supply
- Applications:
- mobile water applications
- air / room / surface disinfection
safe operation due to 24V DC - preheat start ballast for 4-pin lamp operation, optimal preheat settings for soft lamp start
- single device - powers one lamp
- lamp and ballast status indication
- green and red LEDs
- potential free relay contacts - metal housing, designed for optimal thermal flow
- push-in contacts for quick installation
- high efficiency
- small and space saving
- easy system start-up "plug and play"
- safe operation due to 24V DC
- supply voltage: 24V DC ± 10%
- efficiency: ~85%
- operation temperature: max. 50°C (122°F) at TC-point
- ambient temperature: 0 - 40°C (32 - 104°F)
- IP code: IP20
- dimensions (LxWxD): 170 x 56 x 49 mm (6.69 x 2.20 x 1.92 inch)
