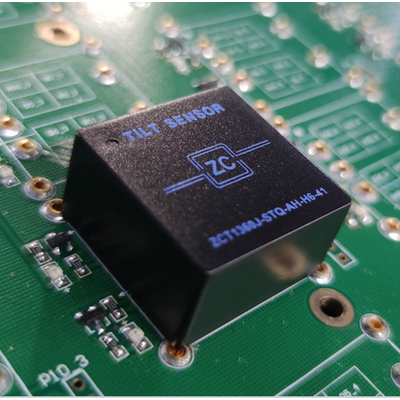

Zhichuan - Model ZCT1360J-STx-AH-H6-41 -PCB-Mount Tilt Sensor for Solar Tracker
ZCT1360J-STX-AH-H6-41 is a single-axis inclinometer sensor developed and produced by Shanghai Zhichuan Electronic Technology Co., Ltd. The maximum measurement angle range is single-axis 360 °, accuracy 0.3 °, TTL output.
Most popular related searches
- Product Modelh: ZCT1360J-STx-AH-H6-41
- Measuring Range: 0~360 °
- Output: TTL
- Power: Voltage(5V)
- Measuring Axis: Single Axis
- Accuracy: 0.01°-0.09°
- zero_point 0.009°/?
- Resolution: 0.1 °
- Application: Solar Tracker
