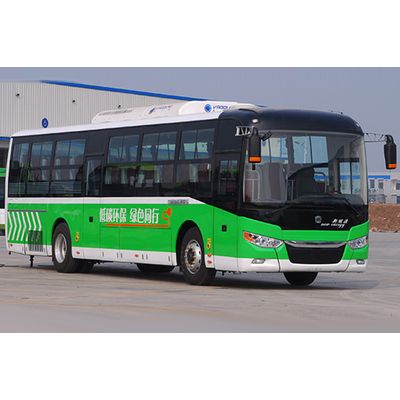

Zhongtong - Electric Coach Bus
The 12m 46 seats Electric Coach Bus runs entirely on electric energy. It is a pure electric bus equipped with intelligent technology. This type of product has low noise, high driving stability and zero emission. Lightweight optimization is used to greatly reduce power and energy consumption
Most popular related searches
power training
lithium battery
energy consumption
power system modeling
electrical equipment
battery capacity
battery system
electric brake
electric motor
- L*W*H (mm): 11990*2500*3600
- Inner height (mm): 2040
- Inner width (mm): 2400
- Wheelbase (mm): 6000
- Front/rear suspension (mm): 2585/3405
- Approach/departure (º): 8.5/8.5
- Ground clearance (mm): 380
- Max. gross weight(kg): 18600
- Capacity (seats): 40+1
- Turning R(mm): 12200
- Max. speed (km/h): 90
- Power train system
- Battery model: Lithium battery
- Unit Voltage/capacity: 3.2V/20Ah
- Total KWH: 350
- Motor model: Three-phase AC asynchronous motor
- Power train type: Direction
- Voltage (V): 547.2 (DC)
- Rated /Max. power (Kw): 142/230
- Rated /Max. torque (N.m): 800/2400
- Running distance (km): At least 250kms. (With Air-on, average speed 70km/h)
- Charging type: Slow charging model (3-4 hours, with 120kw charger)
- Connector/ Socket type: IEC62196 TYPE-2
- Chassis
- Front axle: Dena 7 T; disc brake
- Rear axle: Dena 13T, drum brake
- Suspension: Air suspension 2/4;
- Brake: Electric air pumper; dual-circuit air brake; front disc and rear drum brake; air drier; ABS; and rear automatic adjustment arm
- Tire: Michelin 295/70R22.5 ×6
- Battery: 120Ah×2
- Motor radiator: Electric fan
- Rear view mirror: Electric rearview mirror; inner mirror
- Air conditioner: ZHONGTONG 26000Kcal/h
- Seats: 45+1, ZTZY3072 model, ZTZY1021 adjustable driver seat
