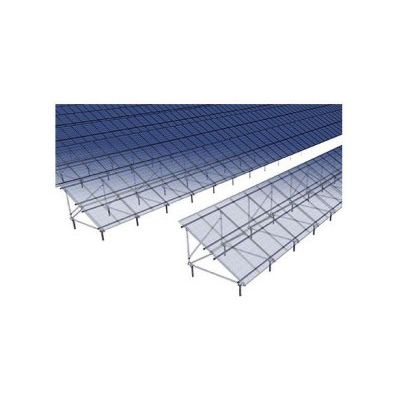

Zilla - Model Helical Pier - Ground Mount Solar Racking System
From Ground Mount Systems
Zilla Helical Pier ground mount systems include helical pier anchors with adapters, pre-fabricated trusses, cross rails, and module attachments with integrated grounding. No additional racking material required.
General
Complete Packages Ready for Modules
Zilla helical piers provide a fast and secure foundation for your ground mount solar mounting system.
Our pre-fabricated truss system requires minimal field assembly while cross rails with module attachments and integrated grounding allow for rapid installation of modules. Together, Zilla helical piers, prefabricated trusses, and cross rail system with integrated grounding provide a simple 3-step ground mount installation that is faster, safer and stronger — at less cost.
Features:
- Available in S, M, L, XL and XXL (we have a size for everyone)
- Standard design includes two rows of modules in portrait orientation at 30 degrees
- Compatible with 60 or 72 cell modules in frame sizes from 26-54 mm (please specify when ordering)
- Complete packages include helical pier anchors with adaptors, prefabricated trusses, cross rails, and module attachments with integrated grounding
Options:
- Can easily be configured for concrete, post in concrete, or ballast foundation types
- Inverter mounting hardware available upon request
- Wire management hardware available upon request
- Custom designs available upon request
Specifications
Helical Pier Anchor:
- Part No.: ZH20
- Size: 0812 - 8' diameter.
- Dimensions: 2” Dia shaft, 8” Dia blade;
- Available in standard nominal lengths of 48”, 60”, or 72”
- Material: GS - Galvanized Steel
- Weight: 4 ft Length: 10.7 lbs; 5 ft Length: 12.4 lbs; 6 ft Length: 14.1 lbs
- Finish: MF - Mill
Helical Pier Adapter:
- Part No.: ZH20-ADP
- Material: GS - Galvanized Steel
- Size: 10'L x 2.75'W x 6'H
- Weight: 2 lbs each
- Finish: MF - Mill
Pre-Fabricated Truss:
- Part No.: Pre-fabricated 30 Truss
- Standard angle: 30 degrees
- Material: NEX 2” Dia. 14 ga Galvanized Steel
- Weight: 65 lbs
- Finish: MF - Mill
Cross Rails:
- Part No.: ZR20-21 MF
- Material: 6061 T6 or 6005 T5 Aluminum
- Size: 2” W x 2” H x Length per design
- Weight: 1.1 lbs/ft
- Finish: MF - Mill
