Zilla - Model XL -Double Stud Flashing Assembly

Zilla Double Stud XL Flashing Assembly attaches directly to sheathing and features patented design innovations that provide a simple, safe, and secure way to install solar PV systems on composition shingle rooftops.

Features:

• Attaches to decking or structure.
• Uses industry-leading installation method of attachment first, flashing second.
• Sleek, low profile design provides three layers of patented waterproof protection.

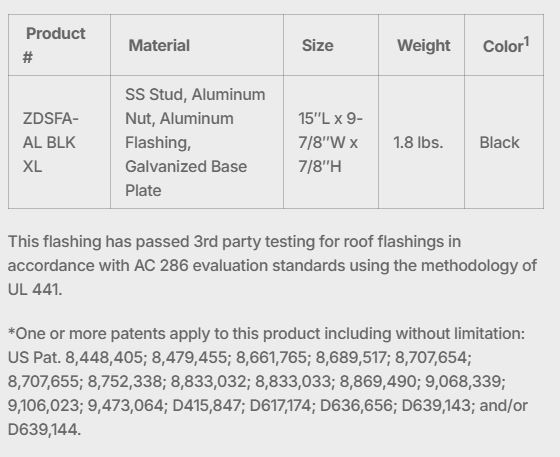

• Passed 3rd party testing for roof flashings in accordance with AC 286 evaluation standards using the methodology of UL 441.
• No shingle cutting or caulking.
• Compatible with all leading racking systems.
• Made in USA.
• 25-year warranty.

Benefits:

• Eliminates need to locate rafters.
• Eliminates need to drill pilot holes and backfill.
• Eliminates need for sealants.
• Eliminates rafter splits.
• Attaches to decking or structure.
• Maintains integrity of the structure during expansion and contraction.
• Install arrays where you want them.
• Reduces training and time spent on the roof.

Each Assembly Includes:

• (1) 9-1/2” x 15” Zilla Double Stud XL Flashing
• (1) Zilla Double Stud XL Baseplate
• (1) Zilla Double Stud with 3/8”-16 threading and EPDM Washer
• (8) #14 x 1-1/2” Hex Head Self Tapping Lag Screws
