ViZn Energy - Model Z20 -Zinc/Iron Flow Battery for Safe Energy Storage

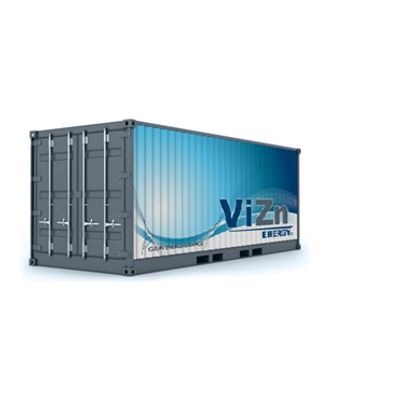

The Z20 Energy Storage System is self-contained in a 20-foot shipping container. On-board chemistry tanks and battery stacks enable stress-free expansion and unmatched reliability. Three to five battery stacks per Z20 provide 48 kW to 80 kW power with 160 kWh energy. Automated ventilation is the only temperature control needed. Systems are easily interconnected for higher power and energy requirements.
One unique battery for both long duration energy and high-frequency power services. Easily stack multiple planned or unplanned services to maximize income streams.
Deploy near densely populated areas and high-value grid infrastructure. Runs on a safe chemistry that is non-toxic, non-flammable, and non-explosive. Easy to recycle at end of life.
Superior ROI due to multiple income streams, 20-year life, lower O&M expense and negligible degradation across 100% state of charge.
Z20 Options
- Z20-3
- Z20-4
- Z20-5
Power (kW)
- 48
- 64
- 80
Energy (kWh)
- 160
- 160
- 160
