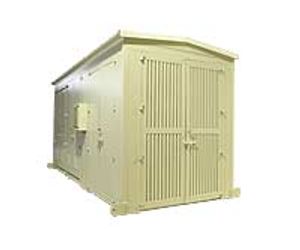

Package Substation
The package substation is fully assembled and tested in MES factory in Sharjah which reduces installation time and cost. The transformer enclosure has a double front opening door provided on three sides with two castell key interlocks to ensure unauthorised access unless both MV and LV isolation is assured. The enclosure can be supplied as standard IP21 or IP31 ingress protection. Increased protection and special applications can be provided upon request.
-
Most popular related searches

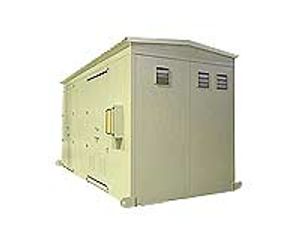

Indoor / Outdoor MV/LV package substation
Indoor / Outdoor MV/LV package substation
Middle East Switchgear has the ability to provide a complete indoor / outdoor package substation incorporating Transformers ( oil immersed or cast resin), medium voltage Ring Main Unit RMU / SF6 switchgear and LV switchgear.
We provide
We provide
- Indoor & outdoor applications.
- Common skid for all equipment.
- Housing fabricated from high quality electro-galvanised steel or Aluminium Sheet (Sandwitch panel) with sloping double roof removable canopy.
- Segregated compartments.
- Separate doors for individual compartments for easy operation maintenance
- Polyester powder coated paint finish RAL 7032. Other colours available on request.
- Transformers Oil immersed or Dry type
- SF6 Insulated Ring Main Units
- LV Switchgear
- Transformer connection direct or through cable to RMU and LV Switchgear.
