Vanmok LD - Cloud base Leak Detection Technology for Short Oil and Gas Pipelines

SHARE

Vanmok specializes in cloud-based leak detection technology tailored for short oil and gas pipelines, essential in the midstream sector where conventional flow meters and data communication infrastructure might be absent. The Vanmok LD Cloud system is an ideal choice for pipeline gathering networks, saltwater injection pipelines, and emulsion or multi-phase pipelines. It utilizes the Vanmok IoT Gateway, a data acquisition unit optimized for integrating with existing field instruments, offering a wireless, off-grid solar-powered solution for ease of deployment and installation. The Gateway, which samples every 50 milliseconds, can be tailored to accommodate various sensors and offers scalability. The package includes a cloud-based platform with robust encryption and user interfaces that are accessible via portable devices. It ensures reliable communication through selectable cellular modems to optimize connectivity.

Most popular related searches
oil and gas pipeline
off-grid solar power
gas pipeline
off-grid solar
off-grid power
solar power
solar grid power
solar power system
off-grid solar system
off-grid power solution
The Vanmok LD Cloud Solution Package is designed specifically anticipating our clients’ needs within the oil and gas industry. This package includes:
  • IoT gateway which scans data at highest sample rate.
  • Optional off-grid solar power system.
  • Sensor transducers configured specifically for the application.
  • Cloud based application with end-to-end encryption.
  • User-friendly dashboard and access via mobile phones/laptop.
  • Cellular modem selection for the best performance of the application and gateway.

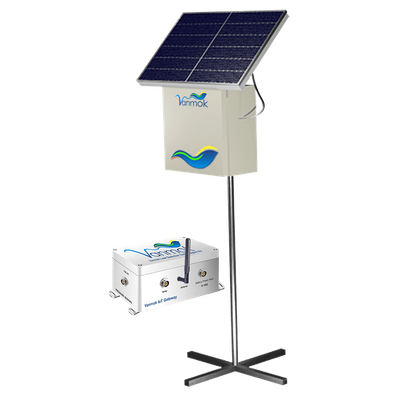

Vanmok IoT Gateway is a Data Acquisition System that uses Internet of Things (IoT) technology to scan the data from the existing instruments at 50 milli seconds per data point. The wireless, off-grid solar-powered units utilized in the design enables rapid deployment. Field personnel are assured with easy-to-install and self-contained units that accommodate easy integration with existing field sensors.

The Gateway is pre-configured with single-channel (4-20 mA), but can be customized to three input channels including:

  • 2 Channels for 4-20 mA Sensors.
  • 1 Channel for 0-5 VDC or 0-10VDC Sensors.

The Vanmok IoT Gateway is connected to pressure transmitters at each end of the pipeline. This gateway is embedded with modern cloud-based technology, which scans data from the pressure sensors at a high sampling rate (50 ms/sample). The data is communicated via a cellular modem, which routes the data to the Vanmok LD Cloud for collection and analysis. The system automatically generates alarms and communicates and escalates any abnormal anomalies to the right person.

Vanmok LD Cloud – A perfect fit for Leak Detection on Short Oil and Gas Pipelines

Vanmok LD Cloud is a cost-effective and autonomous solution for leak detection in oil pipeline networks. The field-proven technology detects leaks from pinholes to large ruptures in less than few minutes by using the highest sampling rate of 50 milliseconds using our dedicated IoT Gateway (DAQ system). It is designed and deployed to meet the specific needs of oil and gas producers. The technology can be applied to:
  • Short segment pipelines in midstream industry where no flow meters and data communication exists.
  • Pipeline gathering networks from oil production wells.
  • Saltwater injection pipelines.
  • Emulsion and Multi-phase pipelines.
