Access Solar Limited products

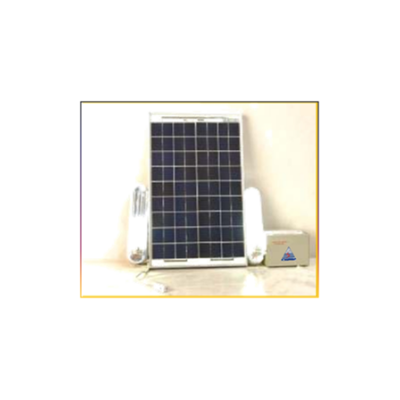

Access Solar Home Lighting Systems is ideal source for providing indoor illumination in remote areas and un-electrified villages. The Solar Home Lighting System essentially consists of solar module, suitable module mounting structure, battery box, charge controller, luminaries, inter-connecting cables and switches etc.

World-class manufacturer of crystalline silicon photovoltaic modules. Unrivaled manufacturing capacity and world-class technology. Rigorous quality control meeting the highest international standards: Regular independently checked production process from international accredited institute/company. Tested for harsh environments (salt mist, ammonia corrosion and sand. Long-term reliability tests. 1 x 100% Pre lamination inspection ensuring defect. Tolerance:0~+5W, Plug&Play, Connectors, High transmssion,low iron, Tempered Glass, Bypass Diodes, Protection, Salt Mist And Ammonia, Resistance Test.

World-class manufacturer of crystalline silicon photovoltaic modules. Unrivaled manufacturing capacity and world-class technology. Rigorous quality control meeting the highest international standards: Regular independently checked production process from international accredited institute/company. Tested for harsh environments (salt mist, ammonia corrosion and sand. Long-term reliability tests. 1 x 100% Pre lamination inspection ensuring defect.

Electrical Characteristic; Nominal Power at STC, (Pmax) 3 WP. Maximum Voltage at Pmax, (Vmp) 9.0 V DC. Maximum Current at Pmax, (Imp) 0.333 A. Open Circuit Voltage, (Voc) 10.8DC. Short Circuit Current, (Isc) 0.373 A. Max. System Voltage 600V DC. Nominal Operating cell temperature (NOCT) 47°C ± 2°C. Temperature coefficient- power 0.00157%/°C. Standard Test Condition Irradiance 1000W/m², Module temperature at 25° C and AM 1.5.

Electrical Characteristic; Nominal Power at STC, (Pmax) 5 WP. Maximum Voltage at Pmax, (Vmp) 9.0 V DC. Maximum Current at Pmax, (Imp) 0.556 A. Open Circuit Voltage, (Voc) 10.8 DC. Short Circuit Current, (Isc) 0.622 A. Max. System Voltage 600V DC. Nominal Operating cell temperature (NOCT) 47°C ± 2°C. Temperature coefficient- power 0.00157%/°C. Standard Test Condition Irradiance 1000W/m², Module temperature at 25° C and AM 1.5.

Electrical Characteristic; Nominal Power at STC, (Pmax) 30 WP. Maximum Voltage at Pmax, (Vmp) 18.0 V DC. Maximum Current at Pmax, (Imp) 1.667 A. Open Circuit Voltage, (Voc) 21.6 DC. Short Circuit Current, (Isc) 1.867 A. Max. System Voltage 1000V DC. Nominal Operating cell temperature (NOCT) 47°C ± 2°C. Temperature coefficient- power 0.00157%/°C. Standard Test Condition Irradiance 1000W/m², Module temperature at 25° C and AM 1.5.

Electrical Characteristic; Nominal Power at STC, (Pmax) 20 WP. Maximum Voltage at Pmax, (Vmp) 18.0 V DC. Maximum Current at Pmax, (Imp) 1.111 A. Open Circuit Voltage, (Voc) 21.6 DC. Short Circuit Current, (Isc) 1.244 A. Max. System Voltage 1000V DC. Nominal Operating cell temperature (NOCT) 47°C ± 2°C. Temperature coefficient- power 0.00157%/°C. Standard Test Condition Irradiance 1000W/m², Module temperature at 25° C and AM 1.5
.

Electrical Characteristic; Nominal Power at STC, (Pmax) 10 WP. Maximum Voltage at Pmax, (Vmp) 18.0 V DC. Maximum Current at Pmax, (Imp) 0.556 A. Open Circuit Voltage, (Voc) 21.6 DC. Short Circuit Current, (Isc) 0.622 A. Max. System Voltage 1000V DC. Nominal Operating cell temperature (NOCT) 47°C ± 2°C. Temperature coefficient- power 0.00157%/°C. Standard Test Condition Irradiance 1000W/m², Module temperature at 25° C and AM 1.5.

Electrical Characteristic; Nominal Power at STC, (Pmax) 40 WP. Maximum Voltage at Pmax, (Vmp) 18.3 V DC. Maximum Current at Pmax, (Imp) 2.182 A. Open Circuit Voltage, (Voc) 22.0 DC. Short Circuit Current, (Isc) 2.444 A. Max. System Voltage 1000V DC. Nominal Operating cell temperature (NOCT) 47°C ± 2°C. Temperature coefficient- power 0.00157%/°C. Standard Test Condition Irradiance 1000W/m², Module temperature at 25° C and AM 1.5.

Electrical Characteristic; Nominal Power at STC, (Pmax) 45 WP. Maximum Voltage at Pmax, (Vmp) 18.3 V DC. Maximum Current at Pmax, (Imp) 2.46 A. Open Circuit Voltage, (Voc) 22.0 DC. Short Circuit Current, (Isc) 2.8A. Max. System Voltage 1000V DC. Nominal Operating cell temperature (NOCT) 47°C ± 2°C. Temperature coefficient- power 0.00157%/°C. Standard Test Condition Irradiance 1000W/m², Module temperature at 25° C and AM 1.5.
