Acme Engineering Prod. Ltd. products

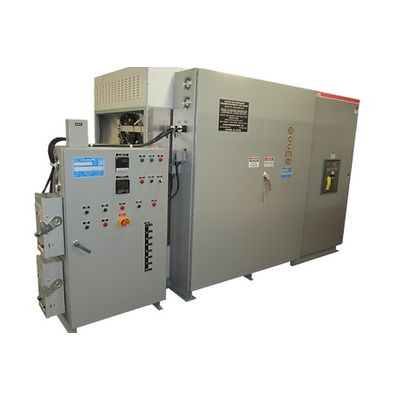

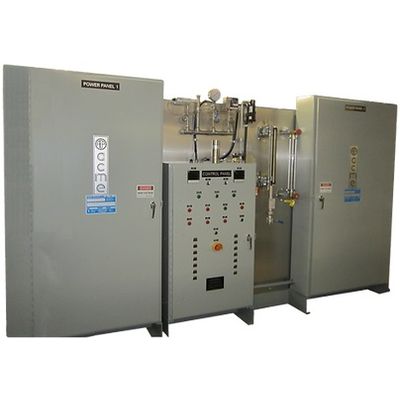

A compact, reliable source of steam for space and process heating, these immersion element boilers are virtually 100% energy efficient. They are completely packaged boilers ideally suited for applications requiring from 30 to more than 10,000 pounds of steam per hour. ACME Steam Generators are based on more than half a century of accumulated experience in the electric heating field, including our range of HV Electrode Boilers for high-capacity needs. Easy and economical to install, ACME Steam Generators are available in sizes from 6 KW to 4 MW at all common voltages up to 600 V, 3 PH. Pressure vessels are built to ASME Code. National Board or CRN registration are available. Standard design pressure is 1035 kPa (150 PSI). Other higher design pressures are available. Pressure vessels can be in Carbon Steel, Stainless Steel – SS304 or SS316, or FRP Pressure Vessels for specialized applications.

Acme electric hot water boilers are economical units that deliver maximum kilowatts in minimum space requirements. Ideal for new boiler applications or as a replacement unit to upgrade existing applications. This model takes up less floor area and fits through smaller openings than oil or gas-fired units. Easy and economical to install, available in sizes from 9 KW to 2600 KW at all common voltages up to 600 V, 3PH. Pressure vessels are built to ASME Code. National Board or CRN registration are available. Standard design pressure is 1035 kPa (150 PSI). Other higher design pressures are available. Pressure vessels can be in Carbon Steel or Stainless Steels – SS304 or SS316.

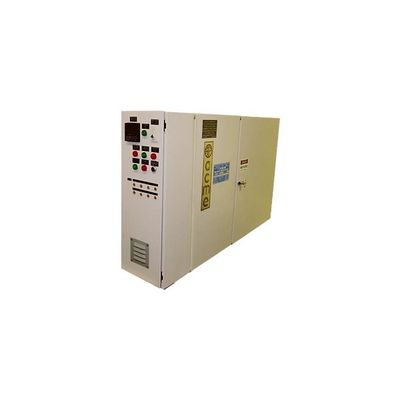

The ACME-SLIM packages represent 40 years of experience in electric heating, temperature control, and manufacture of large integrated package units. They are designed to suit the various conditions required by new construction, conversion jobs, stand-by Hot water Generators, etc. ACME-SLIM’s are built narrow or control high in order to pass through existing 26” doors or corridors and require a minimum of floor space. Piping and panel arrangements are designed to match physical layouts of existing equipment rooms therefore reducing installation costs.

Electric with HT Thermal Storage for Heating Water and DHW Heater (In one package). This is one unit multipurpose in the boiler room. It has independent control of Water Heating, Domestic Hot Water and Glycol Mixture.

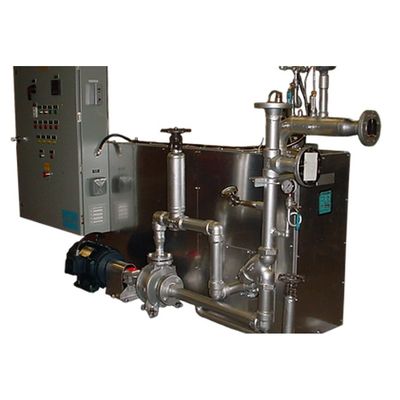

Electric Oil Heaters represent a major advancement in oil heating technology, combining superior oil heating performance with the benefits of safe, clean, quiet, and efficient electric heating. Oil heaters were developed in 1965 specifically for the food processing industry and have proven exceptionally effective and reliable. All Acme Thermal Oil Heaters are custom designed and built to meet application specifications.

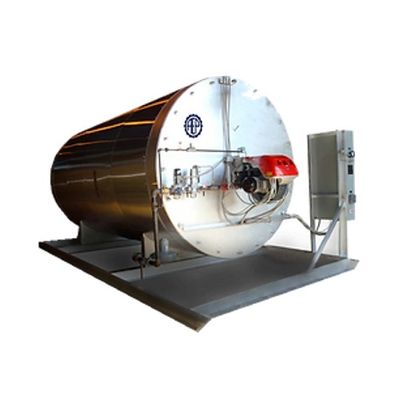

ACME Steam Superheaters are available for operating pressures of up to 800 PSIG and temperatures up to 1200 deg. F. Steam flow is only limited by practical size considerations. Pressure sections are built to ASME code with National Board or CRN registration. Burners are AGA or CGA listed with UL, CSA or other gas train standards as requested or applicable. The ACME Steam Superheater is delivered to the site prewired and prepiped requiring only steam, gas, main power and stack connections. Similar units are available to heat air or other gases. Special features such as weatherproof construction and stainless steel casings for corrosive environments are available on request.

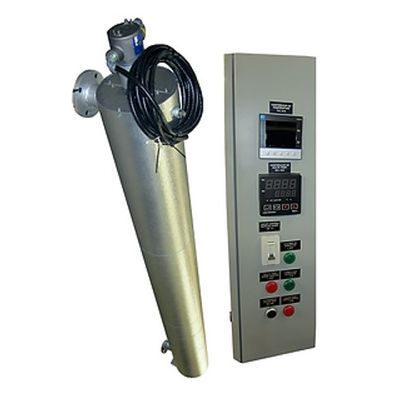

ACME Electric Steam Superheaters are available for use with steam boilers as auxiliary pieces of equipment. Our superheaters are all custom-made and built to meet the specific design requirements of each application. A superheater increases the temperature of the steam but does not increase the latent heat of evaporation. This means that heating with superheated steam is similar to heating with hot air.

ACME Electric Steam Superheaters are available for use with steam boilers as auxiliary pieces of equipment. Our superheaters are all custom-made and built to meet the specific design requirements of each application. A superheater increases the temperature of the steam but does not increase the latent heat of evaporation.

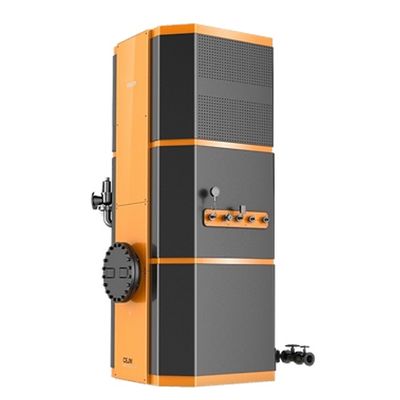

ACME ENGINEERING PRODUCTS offers hot water boilers based on proven design for building complexes, commercial structures, and light industry. This boiler can be connected directly on the high voltage power distribution network.

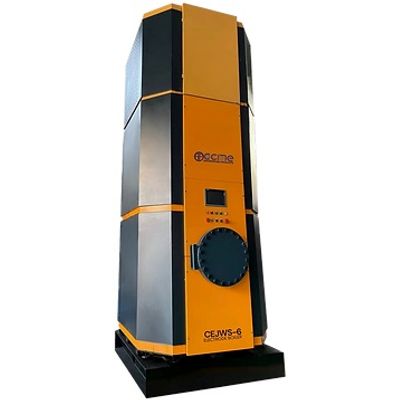

Electrode boilers utilize the conductive and resistive properties of water to carry electric current and generate steam. An A.C. current flows from an electrode to one phase to the ground using the water as the conductor. These Electrode Boilers have unlimited application possibilities wherever a need for process or space heating exists.
