Astrel Group Srl products

Elios4you is a monitoring and self-consumption device for single-phase PV systems rated up to 12 kW. Elios4you uses two current transformers (CT) to measure electrical energy produced and exchanged with the grid, calculating consumption in real time. The “Elios4you” App allows users to control and monitor the production of their photovoltaic system simply and intuitively, and to maximize self-consumption, thanks also to a built-in programmable relay (controlling a heat pump, for example).

Elios4you Smart is a monitoring and self-consumption device for single-phase PV systems rated up to 12 kW, allowing automatic control of up to four wireless accessories for managing self-consumption. With the “Elios4you” App, besides monitoring the production of their photovoltaic system simply and intuitively, users can also programme the activation of electrical appliances according to the level of surplus energy produced, using the wireless Smart Plug RC and Smart Switch RC. Elios4you Smart is compatible with other radio accessories for managing self-consumption.

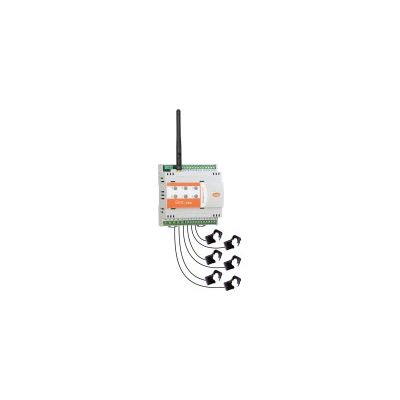

Monitoring and self-consumption device for three-phase PV systems up to 100kW. Elios4you Pro is a monitoring and self-consumption device for three-phase PV systems rated up to 50 kW, managed completely by the “Elios4you” free App. With Elios4you Pro, users can view levels of energy produced, consumed and self-consumed, and much more information besides. Elios4you Pro uses current transformers (CT) to measure electrical energy produced and exchanged with the grid, calculating consumption in real time.

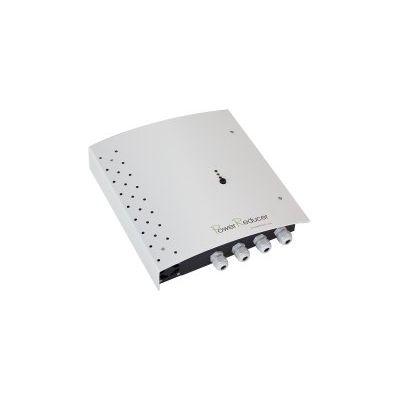

The Power Reducer is a control device which, when combined with Elios4you, provides the facility of producing hot water by maximizing the use of surplus photovoltaic energy generated on site, without ever drawing power from the grid. It is suitable for hot water storage tanks / electric immersion heaters rated up to 3.0 kW. Connected to the Elios4you controller by a cable, the Power Reducer allows the system to divert and route surplus PV power automatically to the immersion heater, without drawing electricity from the grid, even when no more than a few hundred Watts may be available.

Elios4you [Pro] Smart is a monitoring and self-consumption system for three-phase PV systems rated up to 100 kW, allowing automatic control of up to four electrical consumers according to the quantity of surplus energy produced by the system. With the “Elios4you” App, besides monitoring the production of their photovoltaic system simply and intuitively, users can also programme the activation of electrical appliances according to the level of surplus energy produced, using the wireless Smart Plug RC and Smart Switch RC. Elios4you [Pro] Smart is compatible with other radio accessories for managing self-consumption.

Increasing self-consumption and reducing costs: Power Reducer SA is a stand-alone solution generating minimal impact, in terms of expense and difficulty of installation, for producing hot water by means of photovoltaic energy. Routing surplus solar power automatically to an electric water heater with storage tank, users can secure an immediate benefit which, in certain cases, can mean suspending the use of power from the grid for entire periods of the year. Power Reducer SA is suitable for all installations: it operates independently of the inverter and of the monitoring system installed.

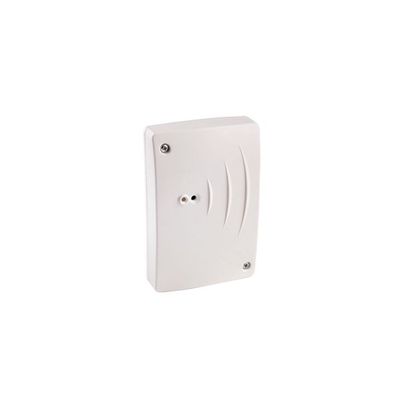

Smart Relay RC is a wireless wall socket designed to make the most of energy produced on site by a PV system, and is compatible with Elios4you Smart systems (single-phase and three-phase). The Smart Relay RC can be programmed by the “Elios4you” free App to switch an electrical load on and off according to the power generating capacity of the PV system and to the amount of power effectively available for self-consumption.

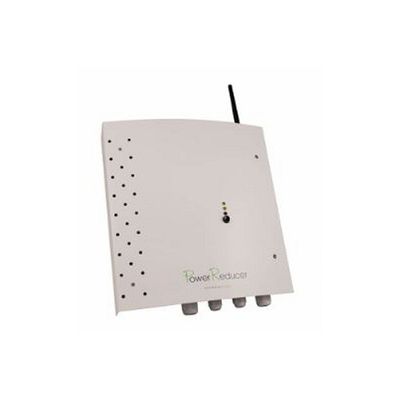

The Power Reducer RC is a wireless device which, when combined with Elios4you Smart (single-phase and three-phase), provides the facility of producing hot water using photovoltaic energy generated on site, without ever drawing power from the grid. Thanks to the wireless connection with the Elios4you Smart or Elios4you [Pro] Smart controller, the Power Reducer RC is easily installed near to the water heater or storage tank, without any need for additional wiring.

Smart Plug RC is a wireless pass-through socket designed to make the most of energy produced on site by a PV system, and is compatible with Elios4you Smart systems (single-phase and three-phase). The Smart Plug RC can be programmed by the “Elios4you” free App to switch an electrical load on and off according to the power generating capacity of the PV system and to the amount of power effectively available for self-consumption.

Red Cap is an accessory that converts Elios4you into Elios4you Smart. Self-consumption provided by a single-phase PV system can be increased by controlling wireless accessories automatically so as to exploit surplus energy. There is also the option of connecting a wireless energy meter (RC).
