Model RC -Smart Plug

FromAstrel Group Srl

SHARE

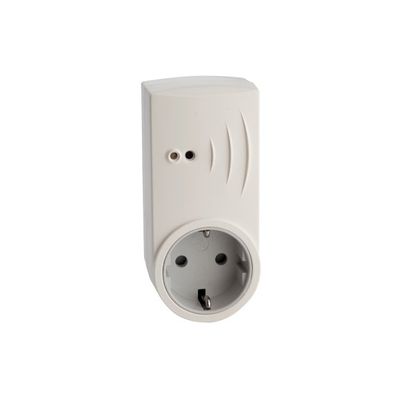

Smart Plug RC is a wireless pass-through socket designed to make the most of energy produced on site by a PV system, and is compatible with Elios4you Smart systems (single-phase and three-phase). The Smart Plug RC can be programmed by the “Elios4you” free App to switch an electrical load on and off according to the power generating capacity of the PV system and to the amount of power effectively available for self-consumption.

Most popular related searches

photovoltaic system

electromagnetic compatibility

energy metering

power generation

energy production

power monitoring

condenser protection

Activation of electrical loads by “Elios4you” App
Max rated power 13A @ 230Vac
Instant usage measurement (displayed on App)
Wireless communication to ZigBee standards
Available with EU (Schuko) / FR / UK standards

General specifications : ZigBee energy meter and wireless switch with pass-through socket
Power supply : 90-240 Vac; 1W; 50/60Hz
Power : Up to 3.0 kW
Max current 13A
Radio specifications : IEEE 802.15.4. / ZigBee Home Automation protocol 1.2, power 3 dBm
Repeater function
Measurements : Active power [W]
Current measurement : With resistive Shunt
Antenna : Internal, gain 0 dB
Plug/socket models : EU (Schuko); French (FR); British (UK)
Environmental parameters : Operating conditions: 0 to +50°C; <80% R.H., non-condensing
Storage conditions: -20 to +70°C; <80% R.H., non-condensing
Degree of protection : IP30
Conformity : Standards 2014/30 UE; 2014/35 UE; 99/5 CEE; 2011/65 UE; EMC (Electromagnetic compatibility); ETSI-EN 300 328; ETSI EN301 429; EN 61000-6-2; EN 61000-6-3; EN 50371; EN 60950-1 DIN 49 440/DIN 49 441-R1
Dimensions (L x H x D) : 51 x 110.5 x 76 mm
