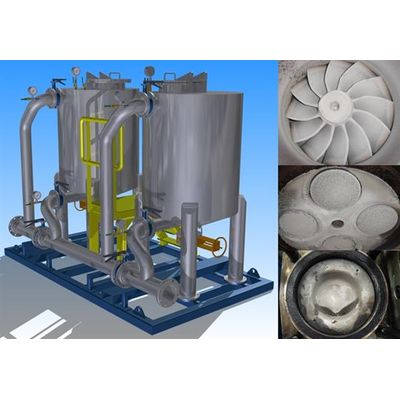

The reactor is built in stainless steal, with retention time, which is considered a huge safety reserve for possible concentration and flow rate peaks. The SILOXANE REACTOR can have one or more chambers, depending on the biogas flow rate. It is vital to have an effective biogas pre-treatment regarding the removal of siloxanes to prevent the premature deterioration of tge equipments.

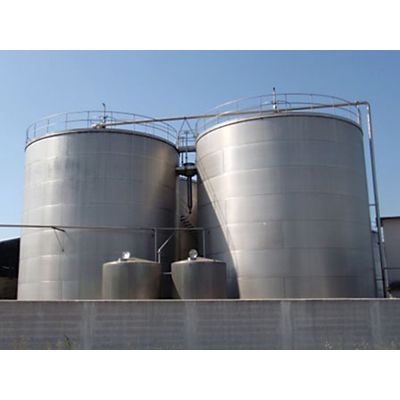

Anaerobic digestion is a biological process, whereby organic matter is converted primarily into methane, carbon dioxide and water, in the absence of oxygen. The methane has an energetic content that allows its use as a gaseous fuel in several applications. This process thus allows to treat the organic waste, producing a renewable energy source - biogas - that can be harnessed for the production of electrical and thermal energy.

The biogas that is obtained through the anaerobic process consists of 50 to 70% of methane and around 30 to 40% of carbon dioxide. The methane gives high energetic value to biogas, however, its use to produce electrical energy is conditioned by the presence of contaminants like H2S and siloxanes, that lead to high maintenance costs, as well as interruptions in the operation of the engine.

The biogas that is obtained through the anaerobic process consists of 50 to 70% of methane and around 30 to 40% of carbon dioxide. The methane gives high energetic value to biogas, however, its use to produce electrical energy is conditioned by the presence of contaminants like H2S and siloxanes, that lead to high maintenance costs, as well as interruptions in the operation of the engine.

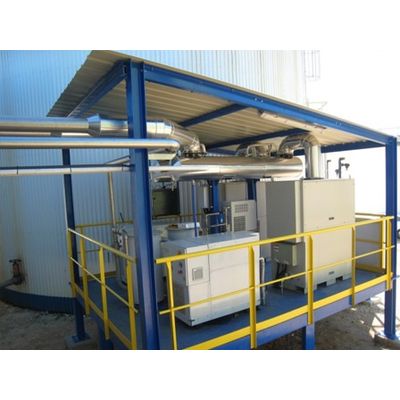

For your biogas' valorisation, Atlas Seis has a special kind of turbine, which is quite different of the ones usually seen. By using a groundbreaking technology of no oil and no cooling liquid operation, the turbine is greener and more eco-friendly. An electrical engine/alternator transforms the engine rotation into electric power, and the thermal energy is obtained from the high temperature exhaust gases.

Atlas Seis has the entire range of Siemens biogas engines, from lower powered ones, up to 1000kWe, making sure that all our clients needs can be thoroughly satisfied, wether it's a cogeneration, mini-cogeneration or micro-conegeration.

It is necessary to always give the right treatment to biogas, either it is produced from wastewater treatment systems or solid waste treatment systems. This means that, sometimes, it is necessary to burn the excess gas. Gas flares are used to burn off gas that cannot be used by the energy recovery systems due to excessive production or due to other reasons, like the biogas valorization equipment being stopped due to maintenances or breakdowns. Atlas Seis sells flares of different capacities that can cover several biogas production systems.

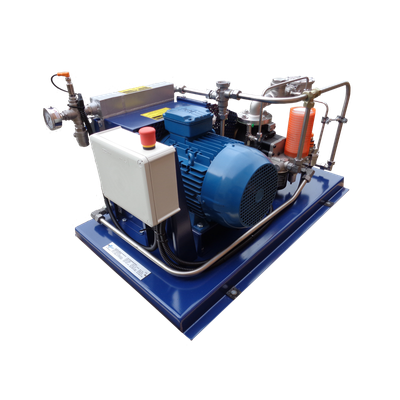

Gas compressor developed by Atlas Seis. Complete with electrical board, frequency varitor and automation system. Includes extra I/O ports for custom needs.

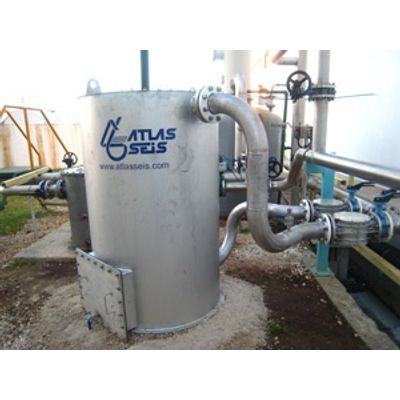

Reactor manufactured by Atlas Seis for the removal of siloxanes on biogas flow. Our modules are designed for use between 200 and 1000 Nm3/h. We can manufacture your reactor taking in account the specific flow and siloxanes concentration of the biogas.
