AWG - American Wire Group products

Used for overhead electrical distribution lines, ground ing electrical substations, electrical test equipment and any other electrical system. Suitable for numerous other applications.

Used for overhead electrical distribution lines, ground ing electrical substations, electrical test equipment and any other electrical system. Suitable for numerous other applications.

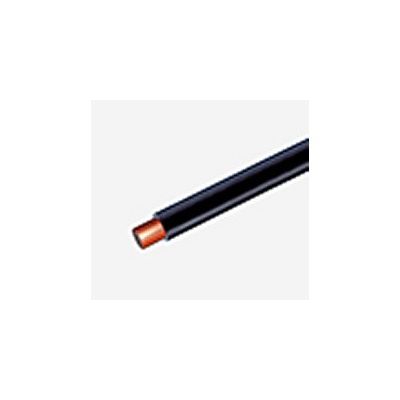

HMW polyethylene covered copperclad steel wire.

Used for overhead electrical distribution lines, ground ing electrical substations, electrical test equipment and any other electrical system. Suitable for numerous other applications.

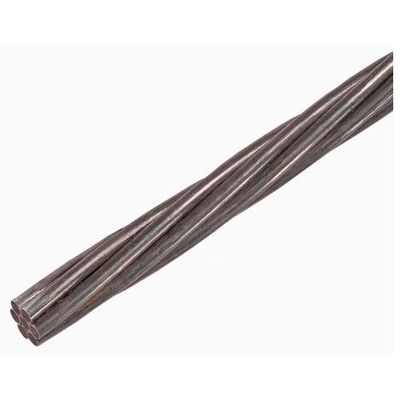

Applications: Messenger Wire, Overhead Ground or Static Wire, Guy Wire. Grades: Utilities, Common, Siemens-Martin, High Strength and Extra High Strength. Finish Coatings: Class A, B and C and Bezinal, a superior corrosive coating of 5% Aluminum and 95% Zinc.

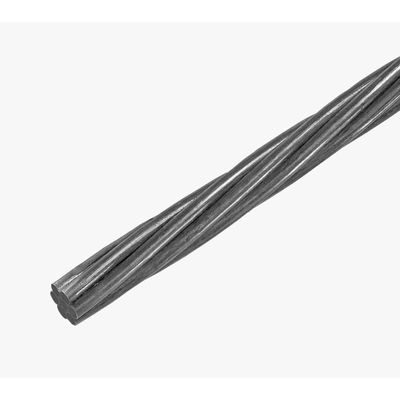

Application: Overhead ground wire, shield wire protecting transmission lines against lightning damage.

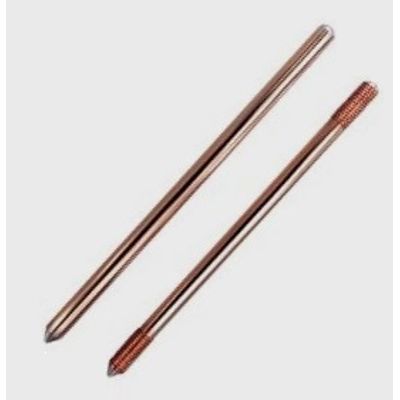

Applications: Driven into the ground in construction process for tower, substation, pole and necessary grounding of all major projects. Construction: High Carbon Steel with an electrolytically applied copper finish in 1/2", 5/8", 3/4" and 1" diameters in varying lengths. Accessory package is of a high quality bronze alloy to provide both ground rod and accessory excellent electrode quality. Available in single type and sectional ground rod style.

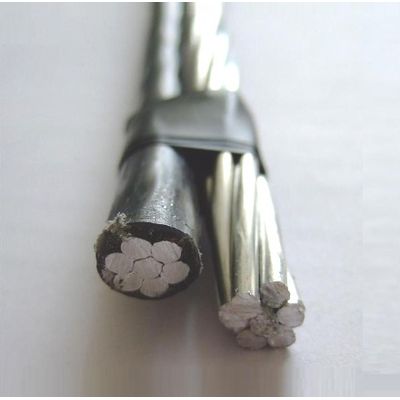

Applications: To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 ºC maximum. Construction: Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC neutral messenger.

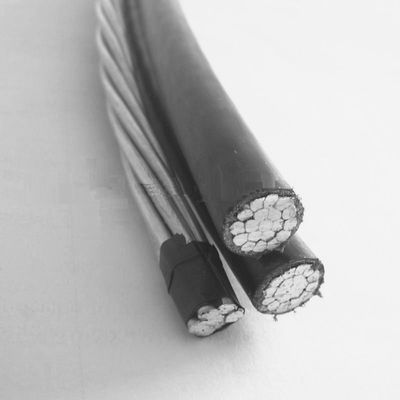

Applications: To supply power from the utility`s lines to the consumer`s weatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75 ºC maximum for polyethylene Insulation or 90 ºC maximum for crosslinked insulation. Construction: Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC neutral messenger.

Application: For runway, taxiway and approach in underground series airport lighting circuits. At 5,000 V rated voltage and maximum conductor temperatures of 90 ºC for continuous normal operation and 250 ºC for short circuit. Suitable for use in wet or dry conditions in metallic and non-metallic conduits, ducts, aerial and direct earth burial installations.
