Bilgeri EnvironTec GmbH products
Biogas Flares

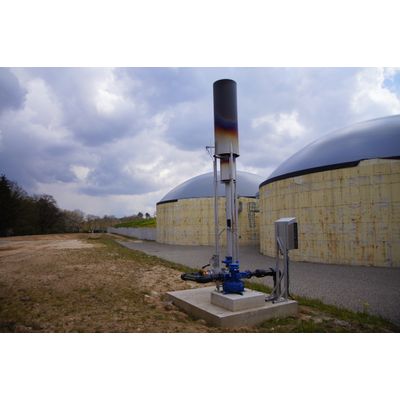

Bilgeri EnvironTec - Biogas Flare
When operating biogas or sewage treatment plants, it may be necessary toburn off excess gas safely(e.g. in the start-up phase, during repairs or in the event of serious consumer damage).
Bilgeri EnvironTec - Biogas/Biomethane Flare
When operating biogas or sewage treatment plants, it is necessary under certain circumstances (e.g. start-up phase, repairs or consumer damage) toburn off excess gas safely. The EnvironTec FAII gas flare series provides the operator with an automatically functioning,safe and low-emission gas flare.

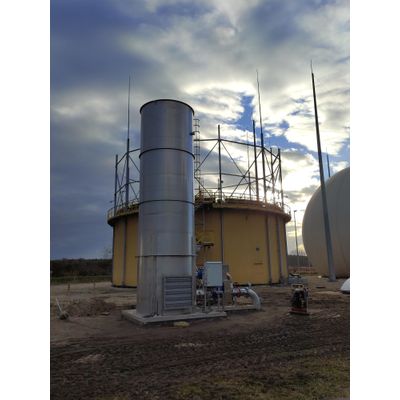

Bilgeri-EnvironTec - High-Temperature Gas Flare
Fully automaticgas flare for thecombustion of biogasand other flammable gases in accordance with TA-Luft 5.4.8.1.3a with automatic exhaust temperature control at 1000°C and dwell time of at least 0.3 sec.
Digester Equipment

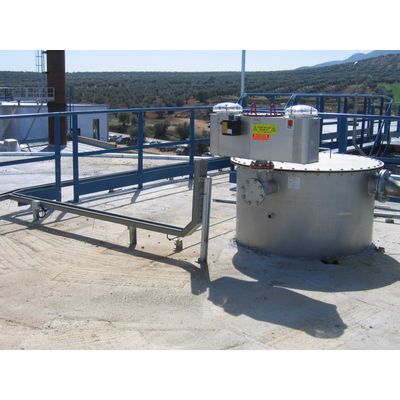

Bilgeri EnvironTec - Gas Dome
A gas dome is a component of the digestion tower positioned above the digested sludge, with the purpose of allowing the digested gas to escape in a controlled manner.
Equipment for Anaerobic Digesters

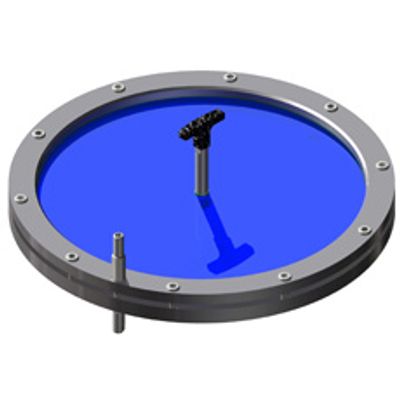

Anaerobic Digester Tanks Sight Glass
Sight gasses are employed for a simple monitoring of processes inside digesters (e.g. scum formation). They can be integrated in a manhole, a gas dome or a gas hood, as well as mounted directly on the digester roof. As additional equipment wipers, sprayers, light fittings, cameras, protective covers and other accessories are available.Biogas Treatment / Biogas Conditioning

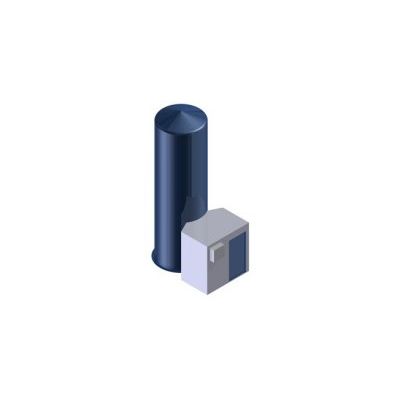

Biological Desulphurization System
Biogas always contains hydrogen sulphide (H2S). Usually, it moves in the range of 1,000 to 6.000ppm, but it can also reach 2% by volume or more. Often this H2S must be removed from the gas, either because of environmental protection reasons or because corrosion danger. The EnvironTec's desulphurization process provides a cost- effective yet highly efficient solution for it. It is a biological process that requires no chemicals and little consumable materials. If a limited amount of air (about 10 -15% air) is added to the gas flow, certain inoculated bacteria (eg Thiobacillus) can break H2S down to elemental sulphur and sulphuric acid. • Fully automated system • High efficiency at low operating costs • Environment – friendly / no disposal costs • Fulfils the quality requirements of VDI directive 3478 • No consumption of chemicals (NaOH, H202, Fe3cl) • Simple operation and maintenance • Container made from PP or FR - Local delivery possible, saving manufacturing and transport costs

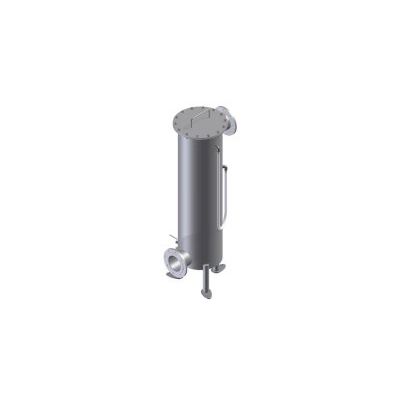

Ceramic Cartridge Fine Filters
Fine filters are used for the fine purification of biogas. This allows the separation of fine particles ≥8 µm as well as condensate vapour. EnvironTec fine filters are fitted with filter candles made from Pantel (special fire clay). As the gas flows through the filter candles from the outside to the inside, anomalous matter is separated out on the outer wall. The filter material used is chemically resistant/neutral, has a high filtration performance coupled with a low pressure loss and is easy to clean with pressurised water. Condensate is drained via an optional siphon or condensate separator. If required, fine filters can also be fitted with differential pressure gauging (U-tube or individual pressure gauges). EnvironTec fine filters are entirely made from 1.4571 stainless steel. • Separation of ultrafine particles and humidity from biogas/sewage gas • Fine purification of the gas, e.g., directly before gas engines • Low pressure loss • Removable filter inserts for easy cleaningBiogas Storage

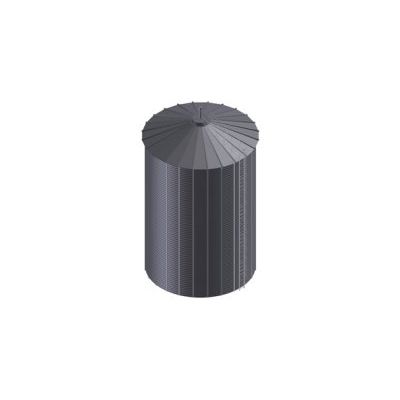

Non-Pressurized Gas Storage System
EnvironTec's TGZ non-pressurized gas holder consists of a prefabricated metal silo made of corrugated steel segments with lateral stiffeners attached to it and a conical roof. Inside it, a tight, high quality, UV-and-fungus-resistant membrane treated with flame retardant (DIN 4102 B1), is connected to the top and the bottom of the silo structure using AISI316Ti flanges, avoiding the membrane to be in contact with the silo walls. Additionally, a protective floor matt is laid on top of the concrete foundation in order to avoid damages on the membrane. The membrane will inflate and deflate as gas flow in and out respectively. Hydraulic pressure-security devices, a mechanical pressure-relief valve as well as an optical fill level indicator and vacuum monitoring ensures and full of continuous monitoring and control of the membrane.
