79 products found
Camille Bauer Metrawatt AG Products
-
Power System Monitoring - Unifunctional Devices
Heavy-current engineering, unifunctional devices. These mostly analog based devices are produced as requested by the customer. Therefore they are suited to a specific measurement task. During the installation process often an additional fine tuning of the output signal via potentiometer is possible.
-
SINEAX - Model F534 - Transducer for Measuring Frequency
Transducer for the conversion of frequency into a direct current or voltage signal, which is proportional to the measured ...
-
SINEAX - Model F535 - Transducer for Measuring Frequency Difference
Transducer for the conversion of the difference in frequency from two electrical systems requiring synchronization into a direct current or voltage signal which is proportional to the measured ...
-
SINEAX - Model G536 - Phase Angle or Power Factor Transducer
Transducer for the measurement of phase angle or power factor in single-phase or 3-phase electrical systems with symmetrical ...
-
Power System Monitoring - Unifunctional Devices - Transducers for AC Voltage
There are voltage transducers with plenty of different characteristics available. The differ in the way how the measured voltage signal is transferred to the output, the type of auxiliary power supply, the measurement range as well as the rated input frequency. Depending on the application the device with optimal performance and cost may be selected.
-
SINEAX - Model U539 - Transducer for AC Voltage
Measuring transducer for the transformation of sinusoidal alternating voltage, with power supply ...
-
SINEAX - Model U543 - Transducer for AC Voltage
Measuring transducer for the transformation of sinusoidal alternating voltage, ...
-
SINEAX - Model U553 - Transducer for AC Voltage
Measuring transducer for the transformation of sinusoidal or distorted alternating voltage - with power supply ...
-
SINEAX - Model U554 - Transducer for AC Voltage with Different Characteristics
Measuring transducer for the conversion of sinusoidal or distorted alternating voltage into an output signal which is proportional to the measured value. Depending upon the variant, the crucial portion of the measuring range can be extended at the beginning or the end (various characteristics). The less crucial or non-crucial portion is ...
-
Power System Monitoring - Unifunctional Devices - AC Current
There are current transducers for different measurement ranges and rated frequencies available. The measurand may be shown as current or voltage output signal, also as live-zero. The type of auxiliary power supply can be selected in accordance with the application.
-
SINEAX - Model I538 - Transducer for AC Current
Measuring transducer for the transformation of alternating current, with power ...
-
SINEAX - Model I542 - Transducer for AC Current
Measuring transducer for the transformation of alternating current, ...
-
SINEAX - Model I552 - Transducer for AC Current
Measuring transducer for the transformation of sinusoidal or distorted alternating current, with power supply ...
-
Power System Monitoring - Unifunctional Devices - High Voltage DC Measuring
Device function: Combination devices: yes. With analog and/or digital outputs: yes.
-
SIRAX - Model BM1200 - High Voltage DC Measuring Device
Application: The devices are designed for measurement in electrical distributionsystems or industrial plants. They are suitable as a replacement ofanalogue built-in measuring devices as well as a cost-effective alternativeto energy meters. All parameters may be set on site. A Modbus RTU(RS485) interface is available for the connection of the devices to ...
-
SIRAX - Model BM1400 - High Voltage DC Measuring System
Application: The devices are designed for measurement in electrical distributionsystems or industrial plants and machines. All parameters may be set onsite. The interfaces Modbus RTU (RS485) or Modbus TCP (Ethernet) areavailable for the connection of the devices to higher-ranking ...
-
SIRAX - Model BT5700 - Universal Measuring Device
The universal measuring device SIRAX BT5700 is suited for fixed mounting and the measurement of Voltage, current, frequency, power, energy (active / reactive / apparent), power factor, phase angle, etc in low voltage switchgear. The units are designed for unbalanced load network forms of 3-phase mains with 3- or ...
-
Power System Monitoring - Unifunctional Devices - Power
Our portfolio contains devices for avtive and reactive power measurement in single-phase AC-systems as well as for balanced or unbalanced three-phase systems. The output may be selected as a current or voltage signal which is proportional to the measurand.
-
SINEAX - Model P530 - Transducer for Active or Reactive Powers
Measuring transducer for the conversion of active power in single phase alternating current or 3-phase systems with balanced or unbalanced load. A load-independent direct current or direct voltage is used as an output signal, which is proportional to the measured active power ...
-
SINEAX - Model Q531 - Active or Reactive Power Transducer
Measuring transducer for the conversion of reactive power in single phase alternating current or 3-phase systems with balanced or unbalanced load. A load-independent direct current or direct voltage is used as an output signal, which is proportional to the measured reactive power ...
-
Power System Monitoring - Unifunctional Devices - Power Factor, Phase Angle, Phase Angle Difference
The measurement of the phase angle resp. the power factor between voltage and current provides information about the load situation in all 4 quadrants. It may be used e.g. as a control or supervision quantity for reactive power compensation. The acquisition of the phase angle difference of two power systems provides one of the three values which are necessary for their synchronization.
-
SINEAX - Model G537 - Transducer for Phase Angle Difference
Transducer for the conversion of the difference in phase angle from two electrical systems requiring synchronization into a direct current or voltage signal which is proportional to the measured ...
-
SIRAX - Model BT5400 - Transducer for Active, Apparent, Reactive Power, Phase Angle and Power Factor
The SIRAX BT5400 is used to measure and convert Active, Apparent, Reactive Power, Phase Angle & Power Factor of a Single phase or Three phase AC System with balanced or unbalanced load into an proportional DC current or voltage output ...
-
Power System Monitoring - Unifunctional Devices - Frequency, Frequency Difference
Our frequency transducers measure the supply frequency of systems with sinusoidal, rectangular or disturbed input voltages with dominating fundamental wave. The measurement of the phase angle difference of two power systems provides one of the three values which are necessary for their synchronization.
-

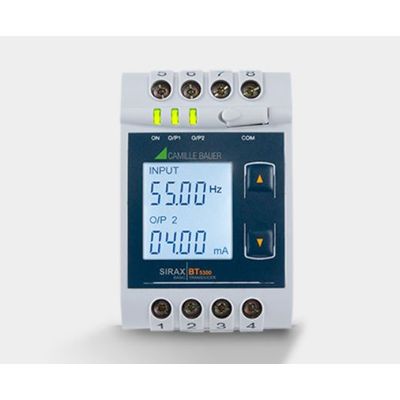

SIRAX - Model BT5300 - Transducer for Measuring Frequency
The SIRAX BT5300 is a top-hat rail mounted Transducer and used to measure and convert frequency input into an proportional DC current or voltage output signal. Input frequency and Output Voltage/Current is displayed on LCD and indicated by ...
-

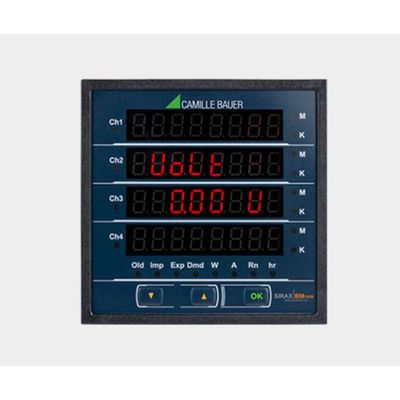

SIRAX - Model BM1450 - Multifunctional DC Energy Meter
The SIRAX BM1450 multifunctional DC energy meter can be used for monitoring and controlling in DC systems. These meters measure a wide range of electrical parameters such as DC voltage, current, power, energy and many more. It supports bi-directional voltage and current measurement, 1 channel voltage input, 4 channel current input and 4 relay outputs. The large 4 line 8 digit LED display provides easy to read data directly on the meter front. The ...
-
SIRAX - Model MM1200 - Measuring Device
Application: The devices are designed for measurement in electrical distribution systems, industrial plants or building automation. They may be used for the acquisition and display of standard electrical variables such as current,voltage, frequency, power and many more. All parameters may be set via the touch screen. A Modbus RTU (RS485) interface is available for the connection of the devices to higher-ranking ...
-
Power System Monitoring - Unifunctional Devices - Active / Reactive Energy Meters
Our multifunctional heavy-current transducers contain meters for active or reactive energy as a built-in additional function. Normally several meters are supported and their dedicated measurand is fixed or programmable. The meter readings may be performed using the appropriate configuration software or for displayable devices directly on the display.
-

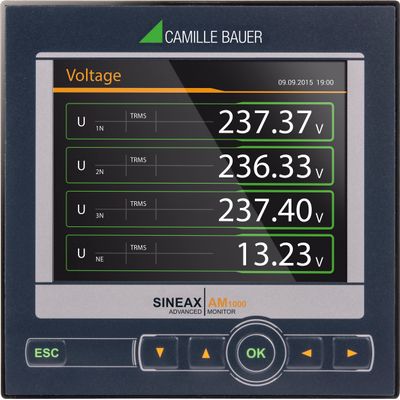

SINEAX - Model AM1000 - Compact Instrument for Measuring and Monitoring
Transparent power quality and energy consumption monitoring. The SINEAX AM1000 is a compact instrument for measuring and monitoring in power distribution systems. It excels in display quality and intuitive operation. The devices provide a wide range of functionalities which may even be extended by optional ...
-
SINEAX - Model AM2000 - Compact Instrument for Measuring and Monitoring
Transparent power quality and energy consumption monitoring. The SINEAX AM2000 is a compact instrument for measuring and monitoring in power distribution systems. It excels in display quality and intuitive operation. The devices provide a wide range of functionalities which may even be extended by optional ...
-
SINEAX - Model AM3000 - Compact Instrument for Measuring and Monitoring
Transparent power quality and energy consumption monitoring. The SINEAX AM3000 is a compact instrument for measuring and monitoring in power distribution systems. It excels in display quality and intuitive operation. The devices provide a wide range of functionalities which may even be extended by optional ...
-

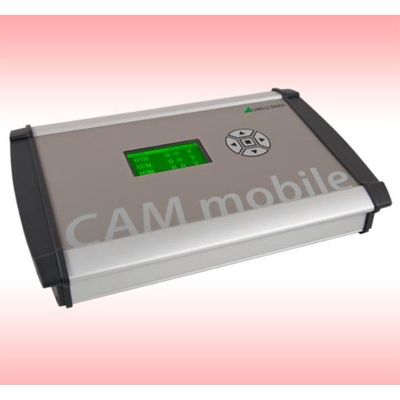

SINEAX - Model CAM - Mobile Analysis Device
Demand analysis in any low-voltage system with data recording. The CAM mobile has been designed for mobile analysis in low-voltage power distributions. It provides the following functions to the user: Analysis of the present system state for monitoring and maintenance purposes. Detection of disturbances such as voltage variations or voltage sags. Demand analysis of power distribution, generators or transformers. Tracing billing relevant quantities such ...
-
Power System Monitoring - Multifunctional Devices - With Analog and/or Digital Outputs
Our multifunctional devices can be configured for all system configurations. All functions are fully programmable and the measurement of almost all quantities of an electrical power system is possible. Both the application (system configuration) and the behaviour of the analog / digital outputs can be fixed via software. The measurand acquisition via programming or, if suited, bus interface is supported as well.
-
SIRAX - Model BT5100 - Transducer for AC Voltage
The SIRAX BT5100 is a top-hat rail mounted Transducer and used to measure and convert AC Voltage input into an proportional DC current or voltage output signal. Input Voltage and Output Voltage/Current is displayed on LCD and indicated by ...
-
SIRAX - Model BT5200 - Transducer for AC Current
The SIRAX BT5200 is a top-hat rail mounted Transducer and used to measure and convert AC Current input into an proportional DC current or voltage output signal. Input Current and Output Voltage/Current is displayed on LCD and indicated by ...
-
SIRAX - Model BT5400 - Transducer for Active, Apparent, Reactive Power, Phase Angle and Power Factor
The SIRAX BT5400 is used to measure and convert Active, Apparent, Reactive Power, Phase Angle & Power Factor of a Single phase or Three phase AC System with balanced or unbalanced load into an proportional DC current or voltage output ...
-
SINEAX - Model M561 - Programmable Multi-Transducer Devices
For simultaneously acquiring 1 freely selectable measurand of an electrical power system. 1 analog output, ...
-
SINEAX - Model M562 - Programmable Multi-Transducer Devices
For simultaneously acquiring 2 freely selectable measurands of an electrical power system. 2 analog outputs, ...
-
SINEAX - Model M563 - Programmable Multi-Transducer Devices
For simultaneously acquiring 3 freely selectable measurands of an electrical power system. 3 analog outputs, ...
-
Power System Monitoring - Multifunctional Devices - With Bus Interface
Multifunctional devices may be configured by means of software for all system configurations and measure concurrently almost all quantities of a heavy-current power system. Depending on the bus interface in addition to the measurand acquisition the parametrization of the devices is supported as well.
-
CENTRAX - Model CU3000 - Highly Accurate Power Measurement Device
The CENTRAX CU3000 combines in one housing for panel mounting the functionality of a highly accurate measurement device for power applications with the possibilities of a freely programmable PLC according IEC 61131. Thus, in many cases, there is no need for a separate PLC, a control system, a remote display or an additional data ...
-
SINEAX - Model DM5000 - For Monitoring all Aspects of Power Distribution
The SINEAX DM5000 is a compact instrument to measure and monitor in heavy current grids. It provides a wide range of functionalities which may even be extended by optional components. The connection of the process environment may be performed by communication interfaces, via digital I/Os, analog outputs or relays. The device may be completely adapted to the requirements on site either via webserver or the optional TFT display. A special software is ...
-
CENTRAX - Model CU5000 - Flexible Solutions for the Energy Industry
The CENTRAX CU5000 combines in one hat rail housing the functionality of a highly accurate measurement device for power applications with the possibilities of a freely programmable PLC according IEC 61131. Thus, in many cases, there is no need for a separate PLC, a control system, a remote display or an additional data ...
-
Power System Monitoring - Multifunctional Devices - With Analog/Digital Inputs
-
SINEAX - Model CAM - For Measurements in Electric Distribution Systems
SINEAX CAM-POWER is designed for measurements in electric distribution systems or in industrial facilities. Its modular design allows it to be adjusted to individual applications and information requirements in an optimum ...
-
SINEAX - Model DME424 - Programmable Multi-Transducers
Programmable multi-transducer for simultaneously acquiring several quantities in heavy current power systems. 2 analog outputs, 4 digital outputs, 4 meters, ...
-
SINEAX - Model DME442 - Programmable Multi-Transducer
Programmable multi-transducer for simultaneously acquiring several quantities in heavy current power systems. 4 analog outputs, 2 digital outputs, 2 meters, ...
-
Power System Monitoring - Multifunctional Devices - With Variable I/O Interface
-
APLUS - Measurement, Monitoring and Power Quality Analysis
The die is cast. The APLUS is a new comprehensive unit for the universal measurement, monitoring and power quality analysis in electrical power networks. It complements the product portfolio of indicative power measurement devices with a high-end variant. The focus is on highest Swiss quality and maximum customer benefit. The device is suited for the application in power distribution, in strongly distorted industrial environments and in building ...
-
SINEAX - Model DM5 - Free-Programmable Universal Measurement Devices
SINEAX DM5S and SINEAX DM5F are free-programmable universal measurement devices for heavy-current systems: Classical high-accuracy transducer, suited for monitoring tasks and retrofit applications in energy distribution and ...
-
Power System Monitoring - Multifunctional Devices - With Display
-
SIRAX - Model MM1400 - For Energy Measurement and Industrial Building Automation
The devices are designed for energy measurement and industrial buildingautomation. They may be used for the acquisition and display of electricalenergy consumptions, standard electrical variables such as current, voltage,frequency, power as well as harmonics up to the 56th. All parametersmay be set via the touchscreen. A Modbus RTU (RS485) interface isavailable for the connection of the devices to higher-ranking ...
-
SINEAX - Model A200 - Display Unit for Multitransducers
Display unit for multitransducers of the DME4 series, no matter if it is a pure bus version or a device with analog and digital outputs. As soon as a A200 is connected to the serial interface of the DME4, the display unit starts to cyclically acquisit measurands. By means of the direct connection to the transducer a first class accuracy of 0.15% (V, I) rsp. 0.2% (power and meter data) is ...
-
SINEAX - Model A220 - Multifunctional Power Monitor
Measurement and display of all values of a 3-phase current ...
-
SINEAX - Model A230s - Multifunctional Power Monitor
Multifunctional power monitor with system analysis. Panel mounting, 96 x 96 mm. The A230 is designed for application in high, medium and low voltage systems. Any current and voltage transformers are taken into account in the calculation of the measured ...
-
Model A200-HH - Portable Display Unit for all DME4 Transducers
Reset of meters and slave pointers via keys (lock facility via jumper) On-site display of measurands of pure bus devices (Modbus, LON, Profibus, Ethernet): Visualization of anonymous bus data, especially helful during installation. Display of all measurands for devices with fixed programmed analog outputs. Easy connection via RS232 cable Load type as 4 quadrant display The 14 mm high LED display ensures good ...
-
Power System Monitoring - Multifunctional Devices - With Data Logger
-
SINEAX - Model A230 - Multifunctional Power Monitor with System Analysis
Multifunctional power monitor with system analysis. Panel mounting, 144 x 144 mm. The A230 is designed for application in high, medium and low voltage systems. Any current and voltage transformers are taken into account in the calculation of the measured ...
-
SINEAX - Model A210 - Multifunctional Power Monitor
Measurement and display of all values of a 3-phase current ...
-
Camille Bauer - Model A2000 - Multifunctional Power Meter for 3-Phase Systems
The A2000 multifunctional power meter measures all values for ...
-
Power System Monitoring - Energy Management - Energy Meters
The energy meters may be universally used for the acquisition and billing of electrical energy in trade, household, industry and building management applications. Momentary circuit loads can be evaluated at any time using the additional instantaneous power display. Variants for direct connection (U1281, U1289) are designed for currents up to 65 A without the installation of additional current transformers. The variants for transformer connection (U1381, U1387, U1389) may be connected both to x/1 A and x/5 A current transformers. Integrated error recognition for incorrect rotary field direction, missing phases, reverse-poled current transformers, measuring range overloads and missing bus connections saves valuable time and test equipment during troubleshooting.
-
Camille Bauer - Model U1281 MID ...U1389 MID - Active Energy Meter with MID Approval
The calibrated energy meter can be used to acquire and bill active energy in industrial, household, commercial and building management applications. Relevant values are transmitted to data logging, billing and optimizing systems, as well as to building automation and control technology applications, by means of a pulse output, or via LON, M-Bus or L-Bus ...
-
ENERGYMID - Model EM2281 and EM2389 - Multifunctional Energy Meter
The MID approved meters can be used to acquire and bill active energy in industrial, household, commercial and building management ...
-
Model U181, U187, U189 - Energy Meters for 4 Quadrants, 2 Tariffs, Calibrated
The calibrated, compact energy meters included in our Compact Line product range can be used to acquire and bill active energy in industrial, household, commercial and building management applications. Relevant values are transmitted to data logging, billing and optimizing systems, as well as to building automation and control technology applications, by means of 2 pulse outputs or the integrated infrared interface and an external interface module. ...
-
Power System Monitoring - Energy Management - Summators
The summators of the Energy Control System acquire meter data via different interfaces and evaluate the same via internal calculation channels. The thus determined values for energy or consumption are summated synchronously to the measuring interval of the power utility over predefined time periods and a programmable interval, and are stored together with the respective maximum values. Using this autonomous energy database, all electrical and non-electrical energy and consumption values can be acquired, visualised, optimised and billed in relation to cost centres.
-
Camille Bauer - Model U1600 - Summator, 24 Metering Channels
The U1600 Summator processes pulse signals and is capable of recognizing digital states. This allows for the logging, visualization and optimization of all electrical and non-electrical energies and energy consumption, as well as cost center ...
-
Camille Bauer - Model U1601 - Summator, 12 Universal Inputs, LON-Bus
The U1601 summator expands the Energy Control System to include processing of analog values, and it simplifies the connection of energy meters to the LON bus. This allows for the logging, visualization and optimization of all electrical and non-electrical energies and energy consumption, as well as cost center ...
-
Camille Bauer - Model U1602 - LON Micro-Summator
The U1602 micro-summator is used as a PC adapter or a LON interface for the ECS-LAN, and is not equipped with its own display or control elements. All relevant energy and power consumption data are acquired by 64 processing channels over defined periods of time at a programmable interval, and are stored to memory as load profiles along with corresponding maximum ...
-
Camille Bauer - Model U1603 - Mini-Summator, 6 Inputs, LON
The U1603 mini-summator is used as a PC adapter or a LON interface for the ECS LAN, and is not equipped with its own display or control elements. Inputs and outputs expand the mini-summator to include data logging and optimization ...
-
Power System Monitoring - Energy Management - Software for Energy Management
-
Camille Bauer - Model K991B - Three-phase Current Cable, 3 m
To connect the Konstanter to the three-phase-AC ...
-
Power System Monitoring - Power Quality
Industry, commerce, health care services, banks and other service providers are extremely dependent upon electrical and electronic systems. These systems influence mains quality themselves in many ways, but they react extremely sensitively to any disturbance as well. It is thus the entrepreneurial responsibility of all modern business operations to keep their own electrical systems under control - 24 hours a day under any possible conditions. Action should be taken as soon as the first signs of poor mains quality appear such as overheated transformers and cables, excessive current in neutral conductors without any explicable cause, tripped protective devices, flickering lights, computer failures and data network problems, interference in telephone lines or inexplicably increased energy costs. Causes can be pinpointed and the elimination of faults can be implemented through the use of suitable measuring equipment.
-
LINAX - Model PQ3000 - Transparent Monitoring of Power Quality and Energy Consumption
The LINAX PQ3000 combines the characteristics of a power quality measurement device with functions for comprehensive energy consumption and condition monitoring. It stands out by the display quality and intuitive ...
-
LINAX - Model PQ5000 - Transparent Monitoring of Power Quality and Energy Consumption
The LINAX PQ5000 combines the characteristics of a power quality measurement device with functions for comprehensive energy consumption and condition monitoring. The integrated webserver allows remote access to all measured data and the parameterization of the device. The device provides a wide functionality, which can be extended further by means of optional ...
-
MAVOSYS - Model 10 - Monitoring Mains Quality, Power and Energy
The MAVOSYS 10 opens up entirely new possibilities for monitoring mains quality, power and energy: It's the first mains analyzer with more than 8 channels, it can be configured in a modular fashion and it provides an ideal, cost-saving solution for all requirements. In combination with an optional ¼ VGA touch-screen, the multiuser web interface from Encore series software and special AnswerModules®, all conceivable analysis wishes are ...
-
SMARTCOLLECT - PM20 for Power Quality
The PM20 module extents the basic PM10 module by varied visualising and analysis options for system quality instruments. The PQDIF files of system quality instruments are imported, converted and written into the database. Measured data may be issued as a report according to ...
-
LINAX - Model PQ5000-Mobile - Device Handbook
This measurement solution supports campaigns (repeated measurements at the same location) by a configuration manager with up to 20 storable device settings, can provide a WLAN access point for connecting mobile devices and provide all data for evaluation via the device's own website. In order to be able to validate the power quality at the measuring location, the duration of the measurement should be at least 7 full ...
-
Power System Monitoring - Process Control - Signal Conversion - Power Packs
Our power packs provide the DC power supply for 2-wire transmitters and transfer the measured variable unchanged to the electrically insulated output. These differ in their capability for FSK communication, the number of supply circuits and their open or short-circuit monitoring and signalling. Power supply units designed for FSK communication are used in conjunction with "intelligent" 2-wire transmitters which are capable of dialogue and operation according to the FSK principle and the HART or user-specific protocol. The series also includes “intrinsically safe” versions [EEx ia] IIC with an intrinsically safe input. These operate in conjunction with intrinsically safe 2-wire transmitters located in explosion hazard areas.
-
SINEAX - Model B812 - Transmitter – Power Supply Units
The SINEAX B812 unit supplies all commercially available 2-wire field transmitters. The separation is HART penetrable, i.e. you can parameterise or read out intelligent transmitters via HART or customised protocols. Two power supply versions with wide area power packs ensure the connection to all common power supplies. It is one of the smallest products on the market. Nevertheless, we did not make any compromise in relation to safety. The unit embodies ...
-
SINEAX - Model VS70 - Power Supply for the CB-Power-Bus
Bridging power supply through the DIN rail bus connector (CB-Power-Bus). Redundant power supply. Built-in over-voltage (surge) protection. Supply of up to 75 modules. Two individual power supply sources can be connected to one SINEAX VS70 module. Small dimensions (6.2 x 93.1 x 102.5 mm). Spring cage clamp ...
-
SINEAX - Model SI815-1 - Passive DC Signal Isolator
Signal isolator for electrically isolating the 4 to 20 mA measuring/supply circuit of a measuring transducer with 2-wire ...
-
SINEAX - Model SI815-5 - Passive DC Signal Isolator
Signal isolator for electrically isolating the 4 to 20 mA measuring/supply circuit of a measuring transducer with 2-wire ...
-
Power System Monitoring - Process Control - Signal Conversion - DC Signal Isolators
Passive DC signal isolators serve to galvanically insulate a DC signal, which is transfered into a DC current or DC voltage signal depending on the device version. These prevents the transfer of interference voltages and currents and help to solve grounding problems in meshed signal networks. Active DC signal isolators require an auxiliary power supply. However, the DC signal to insulate and the associated output quantity can be freely parametrized, linearized and reinforced. These reduces significantly the number of variants needed.
-
Camille Bauer - Model DCM817 - Signal Isolator for Electrically Isolating an Analog DC Signal
It functions as a passive isolator without external supply power and draws its minimal energy requirements from the DC ...
-
SINEAX - Model TI816-5 - Passive DC Signal Isolator
DC signal isolator, passive, no power supply needed. Signal isolator for electrically isolating an analog DC signal, and for converting it to a current signal or a voltage signal depending upon the utilized device variant. Functions as a passive isolator without external supply power and draws its minimal energy requirements from the DC ...
-
SINEAX - Model TI807-1 - Passive DC Signal Isolator
Signal isolator for electrically isolating an analog DC signal and for converting it to a current signal or a voltage signal depending upon the utilized device ...
-
SINEAX - Model TI807-5 - Passive DC Signal Isolator
Signal isolator for electrically isolating an analog DC signal and for converting it to a current signal or a voltage signal depending upon the utilized device ...
-
SINEAX - Model TV804 - Current Converter With Galvanic Separation
DC current isolator: Input: Current (active or passive). Output: Current (active or passive). Response time: 40 ms. Power for 2-wire transducers, 20 V DC. 3-way galvanic isolation. Power supply: 9...40 V DC, 19...28 V ...
-
SINEAX - Model 2I1 - Passive DC Signal Isolators
Signal isolator for electrically isolating an analog DC signal. Functions as a passive isolator without external supply power and draws its minimal energy requirements from the DC ...
-
SINEAX - Model TI801 - Loop Powered Converter (2-Wire) mA to mA
Input: 1 channel, current 4...20 mA. Output: 1 channel, current 4...20 mA. Channel to channel isolation of 1.5 kV. Power supply: self powered from the input (primary) ...
-
SINEAX - Model TI802 - Loop Powered Converters (2-Wire) mA to mA
Loop powered converters (2-wire) mA to mA. Input: 2 channels, current 4...20 mA. Output: 2 channels, current 4...20 mA. Channel to channel isolation of 1.5 kV. Power supply: self powered from the input (primary) ...
-
Power System Monitoring - Process Control - Signal Conversion - Alarm Units
-
SINEAX - Model V620 - Universal Converter
Universal converter for mA, V, TC, RTD, Ω; Input: Voltage, current, RTD, TC, NTC, potentiometer, rheostat. Strobe: Input (control analog output). Output: Current, voltage, relay (SPST). Resolution: Programmable from 11 to 15 bit + sign. Accuracy: 0.1%. Response time: 35 ms (11 bit + sign). Isolation: 1500 V AC at 3 ways. Power supply: 9...40 V DC, 19...28 V ...
-
SINEAX - Model V622 - Universal Converter
Universal converter for mA, V, TC, RTD, Ω; Input: Voltage, current, RTD, TC, NTC, potentiometer, rheostat. Strobe: Input (control analog output). Output: Current, voltage, relay (SPST). Resolution: Programmable from 11 to 15 bit + sign. Accuracy: 0.1%. Response time: 35 ms (11 bit + sign). Isolation: 1500 V AC at 3 ways. Power supply: 85...265 V ...
-
SINEAX - Model C402 - Alarm Unit
Limit monitor for monitoring limit values when performing measurements with standard current or voltage signals. 2 limit contact devices. 2 relay outputs, each equipped with one changeover contact. Signal flow direction can be selected for relays and LEDs with jumpers. Electrical isolation between measurement input, contact outputs and auxiliary power. Power supply: integrated AC-DC power pack with large tolerance range. Housing for top-hat rail or ...
-
Accessories - Extension Moduls for A2xx Series
-
Camille Bauer - Model EMMOD201 - Extension Module for Multifunctional Power Monitors
Extension module for multifunctional power monitors of the A series. Serial interface RS232/RS485 (MODBUS), digital input, data ...
-
Camille Bauer - Model EMMOD202 - Extension Module for Multifunctional Power Monitors
Extension module for multifunctional power monitors of the A series. 2 analog ...
-
Camille Bauer - Model EMMOD203 - Extension Module for Multifunctional Power Monitors
Extension module for multifunctional power monitors of the A series. Ethernet interface, 2 digital inputs, data logger with ...
-
Camille Bauer - Model EMMOD205 - Extension Module
The extension module EMMOD 205 supplements the functionality and flexibility of the basic device A2xx and enables the communication via LON interface. Data exchange with a control system may be done by means of the LONTALK® protocol. The module can be retro-ï¬tted without alteration of the basic unit and is available in two different ...
-
Camille Bauer - Model EMMOD206 - Extension Module for Multifunctional Power Monitors
The EMMOD206 extension module is simply plugged onto the back of the A210, A220, A230 or A230s power instrument and supplied by the same. The basic instruments can be parameterised via keys at the device itself or via the ...
