Celem Passive components Ltd. products

The new CSM IPT is the samllest 85 kVAr capacitor available. It is specially designed with a low profile of 14 mm to suit the demands of inductive power transfer systems. Any capacitance can be customized and it is also available in high temperature film.

Water-cooled capacitors offered by Celem are designed to provide optimal performance by integrating water cooling within the capacitor itself. The range includes several models such as the C500TW, CSP 505, CSP 555, CSM 800, CSP 1000, CSP 1200, CMF, QUAD 1000, QUAD 1001 HV, and CSP 1005/1500. These capacitors cover a wide range of applications, from medium to high frequencies, and offer robust and flexible mounting options. For instance, the C500TW model is based on the C500T but includes water cooling for improved performance. The CSP 505 and CSP 555 models offer 500kVAr and 800kVAr, respectively, while the CSM 800 can be mounted in either CSP or CSM mode. The CSP 1000 and CSP 1200 are designed for high frequency and medium frequency applications, respectively. The CMF model features a patented structure that allows for internal serial connection of two elements, doubling the voltage. The QUAD series offers flexible mounting options, with the QUAD 1001 HV providing higher capacitance and voltage values. Lastly, the CSP 1005/1500 is used in ultra-high power systems and can be tuned with a specialized model.

C-Cap 01 is a standardized capacitor element, featuring a power capacity of 900kVAr and an adjustable capacitance range from 0.36 to 9.5µF. It's a popular choice for systems utilizing multiple capacitors due to its consistent performance and reliability. The product's coaxial structure offers several technical advantages. Firstly, it eliminates external magnetic fields around the capacitor, thereby reducing induction heating losses. Secondly, the design prevents crosstalk and magnetic interference between adjacent components, ensuring stable performance across the system. Additionally, the coaxial architecture promotes a homogeneous current distribution, which eliminates hotspots and enhances the longevity and efficiency of the capacitor compared to conventional designs. All C-Cap models share identical mounting holes and connection configurations, making them easily interchangeable. Custom designs can also be developed upon request. The busbar design is simplified to optimize effectiveness, aligning well with modern efficiency requirements.

Celem's HTC series high temperature capacitors utilize advanced high-quality high-temperature film, making them particularly well-suited for wireless power transfer in automotive applications. These capacitors are engineered to withstand elevated temperatures, ensuring reliable performance in demanding conditions typical of automotive environments. Their construction aims to mitigate the risks associated with thermal stresses, thereby enhancing the longevity and efficiency of wireless power systems in vehicles. The high-temperature capacitors from Celem play a crucial role in maintaining the integrity and functionality of wireless power transfer systems under varying thermal conditions, contributing to the seamless operation of modern automotive applications.

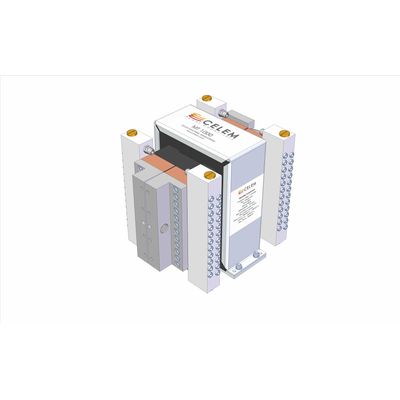

The MT Matching Transformers from Celem Passive Components are designed to deliver a compact and effective step-down voltage solution for induction-heating systems. These transformers excel in high-frequency and high-power applications due to their precision engineering. Their design addresses key characteristics such as efficiency, reliability, and compactness, making them an optimal choice for advanced induction-heating setups. These transformers are particularly valuable in environments where stringent performance criteria are crucial. Designed for integration into various high-power systems, the MT series ensures stable and efficient voltage transformation with minimal energy loss, meeting the demanding requirements of industrial applications.
